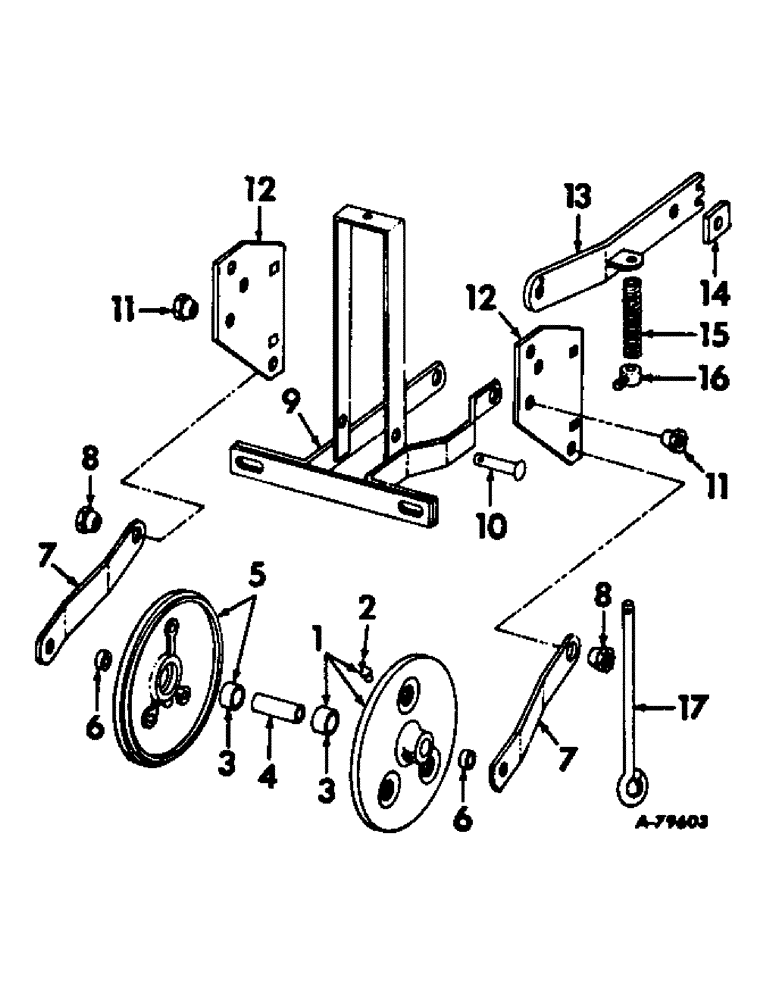

Запчасти Case IH 80 (A-31) - SEED FIRMING WHEEL AND CARRYING FRAME, ONE PER ROW
№
Артикул
Название
Примечание
Количество
1
524732R11
WHEEL
ASSY, half
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4-20 x 3/4 c-z hex-hd mach
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
2
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 str drive type lub
1шт.
3
524735R1
BUSHING
wheel
2шт.
4
524734R1
BUSHING
wheel
1шт.
5
524733R11
WHEEL ASSY.
WHEEL ASSY, half
1шт.
6
520209R1
SPACER
pressure rod
2шт.
7
520210R1
SUPPORT
RAIL, wheel side
2шт.
17719R1
BOLT, 3/8-16 x 4 hex-hd mach
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
102635
NUT,3/8"-16, G5
1шт.
510579R1
WASHER
13/32 x 1-1/4 x 16 ga
1шт.
8
PO2944
NUT
side rail support
2шт.
18795R1
BOLT,Hex, 7/16"-14 x 1 1/4", G2
7/16-14 x 1-1/4 c-z hex-hd mach
4шт.
NLS
NO LONGER SERVICED
13/16 x 1-1/2 x .134 c-z
2шт.
9
477156R91
FRAME ASSY, carrying
1шт.
18794R1
BOLT,Hex, 7/16" - 14 x 1", Gr 2
7/16-14 x 1 c-z hex-hd mach
2шт.
10
PO14926
SPLIT PIN/SAFETY PIN
PIN, 1/2 x 3-1/2 std-hd
1шт.
11
PO2944
NUT
side rail pivot
2шт.
13120R1
Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"
1шт.
12
520213R2
PLATE, attaching
2шт.
187147
BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5
SCREW, 5/16-18 x 3-1/2 znd hex-hd cap
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga c-z
4шт.
18779R1
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
3/8-16 x 1-1/2 c-z hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
13
477154R21
ARM
ASSY, pressure rod
1шт.
14
520212R1
SPACER, pressure arm
1шт.
15
PO104
VALVE SPRING
SPRING, pressure
1шт.
16
517951R11
WEAR PAD
COLLAR ASSY, pressure rod set
1шт.
22214R1
SCREW, 5/16-18 x 3/8 c-z sq-hd cup-pt set
1шт.
17
519181R1
ROD
pressure
1шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga c-z
1шт.
21628R1
PIN
1/8 x 3/4 c-z self-opening cot.
1шт.
Выбрано товаров: 37
