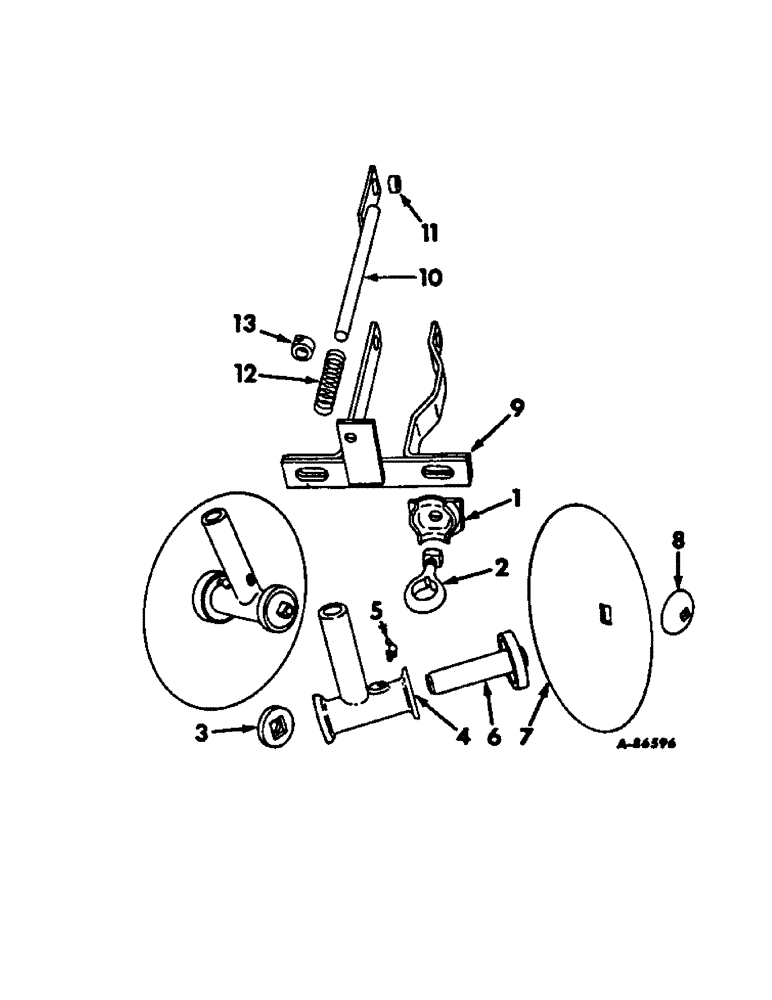

Запчасти Case IH 80 (A-30) - DISK COVERING ATTACHMENT, CORN, MINIMUM TILLAGE PLANTER, ONE PER ROW

1

PO2942

BRACKET

adjusting

2шт.

2

PO11454A

BOLT

EYEBOLT, covering disk bearing

2шт.

102639

NUT,5/8"-11, G5

2шт.

615135R1

WASHER

21/32 x 1-3/4 x 11 ga

2шт.

3

4243

SPRING COMPRESSOR

WASHER, disk brg

2шт.

4

PO2941

BEARING, covering disk

2шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 x 67-1/2 deg elbow lub

2шт.

6

4241

SET

AXLE, disk

2шт.

7

S2287

DISK, 12 in.

2шт.

15340R1

BOLT, 1/2-13 x 6-1/2 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

4242

WASHER, disk

2шт.

9

484153R91

FRAME ASSY, carrying

1шт.

10

484155R91

ROD ASSY, spring pressure

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/2 x 16 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

11

484158R1

WASHER

BUSHING, pressure rod

1шт.

12

PO104

VALVE SPRING

SPRING

1шт.

13

516595R1

COLLAR

set

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

2шт.
