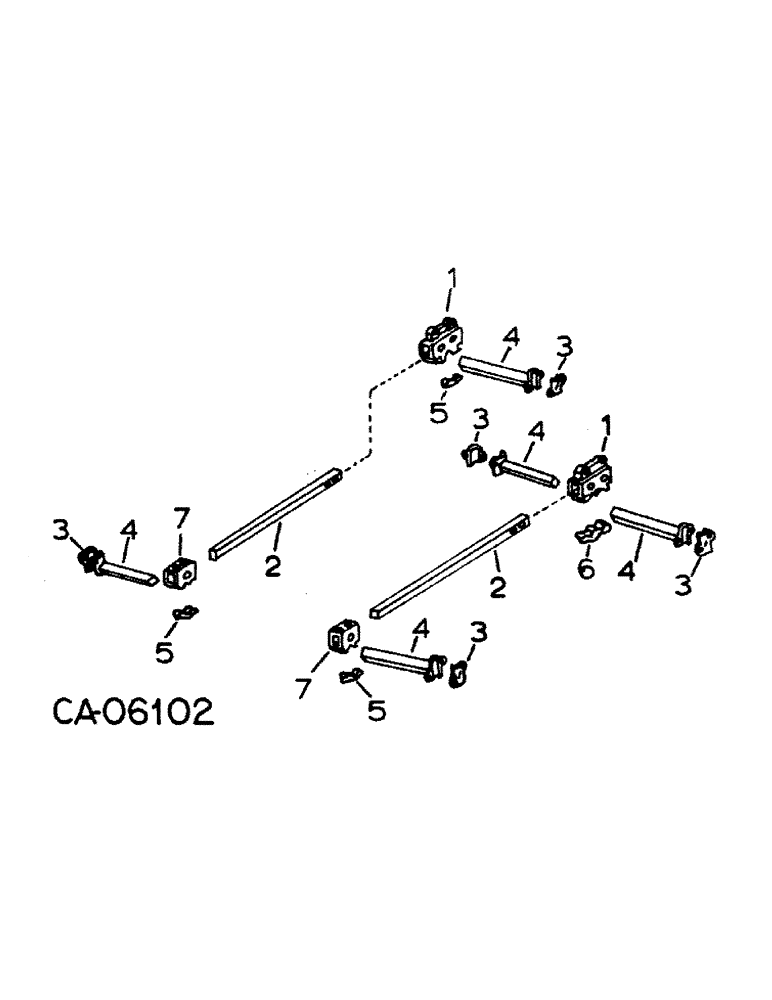

Запчасти Case IH 80 (B-04) - TOOL BAR LINKAGE (09) - CHASSIS

1

542040R1

CLAMP

double

4шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 znd hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

136316C1

BAR

tool

4шт.

3

510918R1

CLAMP

CAP, extension

10шт.

4

30790BA

EXTENSION

tool bar

10шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8-11 x 2-1/2 znd sq-hd mach

20шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

20шт.

5

547750R1

CLAMP

CAP, clamp single

6шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

18шт.

589068R1

WASHER

.656 x 1.250 x .090

10шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

10шт.

6

542039R1

CLAMP

CAP, double clamp

2шт.

7

542995R1

CLAMP

single tool bar

4шт.

26143R1

SCREW, 3/4 x 1-1/4 dog-pt sq-hd set

4шт.
