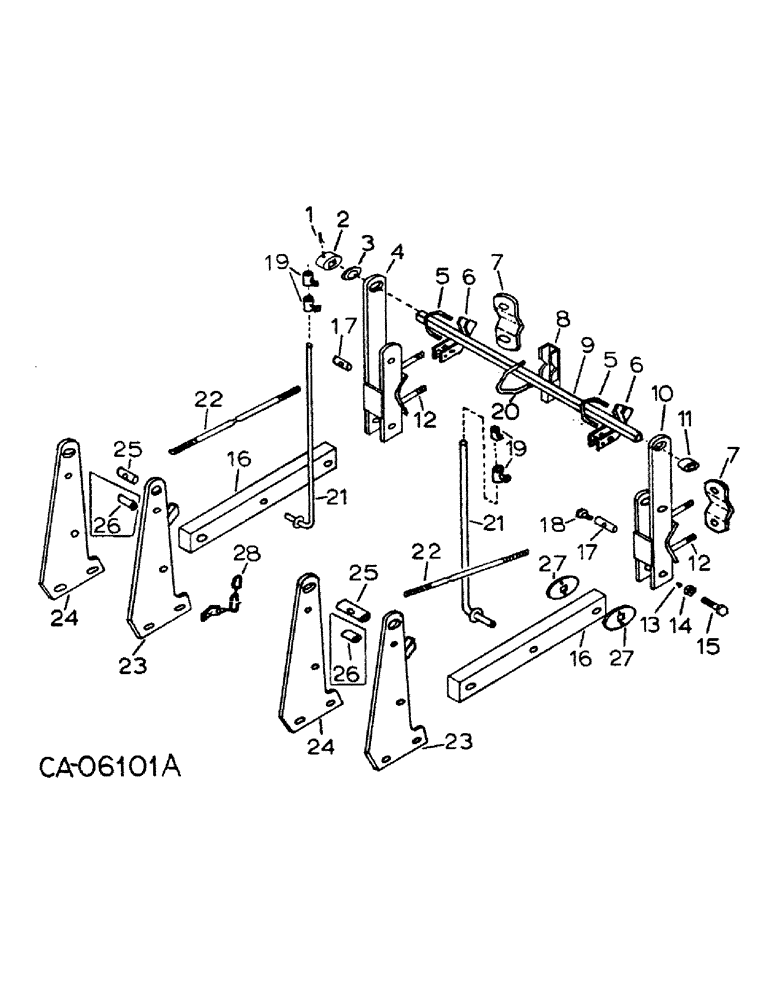

Запчасти Case IH 80 (B-03) - PARALLEL LINKAGE (09) - CHASSIS

1

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

2

523327R1

BEARING, inner rockshaft, serial number 651 & below

2шт.

21720R1

WASHER

2-17/32 x 3-1/4 x .054 znp

2шт.

2

522495R1

BEARING ASSY,2.75" OD x 1.125"

inner rockshaft, serial number 652 & above

2шт.

3

22188R1

WASHER

2.281 x 3.000 x .067

2шт.

4

136301C1

SUPPORT

ASSY, inner RH, head stand

1шт.

4

136300C1

SUPPORT

ASSY, inner LH, head stand

1шт.

5

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

6

136304

ARM ASSY, lift

4шт.

7

136311C1

CLAMP

4шт.

8

136306C1

ARM

ASSY, rockshaft

2шт.

9

1251006C1

BAR

rockshaft 1-1/4 in., serial number 652 and above

2шт.

9

136313C1

BAR

rockshaft 1-3/8 in., serial number 651 and below

2шт.

10

136299C1

SUPPORT

ASSY, outer RH, head stand

1шт.

10

136298C1

SUPPORT

ASSY, outer LH, head stand

1шт.

11

523328R1

BEARING ASSY,2.8125" OD x 1"

outer rockshaft, serial number 651 & below

2шт.

11

522496R1

BUSHING

BEARING, outer rockshaft, serial number 652 & above

2шт.

12

489670R1

BOLT

U-BOLT

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8-14 znd hex

8шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lubrication

8шт.

14

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex. jam

8шт.

15

487061R2

BOLT,Hex, 3/4" - 10 x 3"

special end drill

8шт.

16

136315C1

PIVOT

BAR, lower link

4шт.

17

483285R1

PIVOT ASSY.

SWIVEL, LH thread

4шт.

18

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 hex-hd mach

4шт.

19

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, locking

8шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

8шт.

20

525037R1

BOLT,U, 5/8" x 4 3/8"

U-BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

4шт.

21

136302C1

ROD

ASSY, pressure

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

22

136314C1

TURNBUCKLE

linkage, rod

4шт.

23

1250965C91

PLATE

ASSY, tool stand

4шт.

110455

SCREW

1/2x2-1/2 pln c/pt sq/hd set

4шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

4шт.

24

136318C1

PLATE

tool stand, tapped

4шт.

24

136319C1

PLATE

tool stand, plain

4шт.

25

483286R1

PIVOT ASSY.

SWIVEL, RH thread

4шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 type 1

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

26

136317C1

SPACER, serial no. 651 & below

4шт.

27

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

wear

8шт.

28

CHAIN, depth stop (NSS)

2шт.
