(B-02) - MAIN FRAME, STAND AND CONNECTIONS

Запчасти Case IH 80 (B-02) - MAIN FRAME, STAND AND CONNECTIONS (09) - CHASSIS

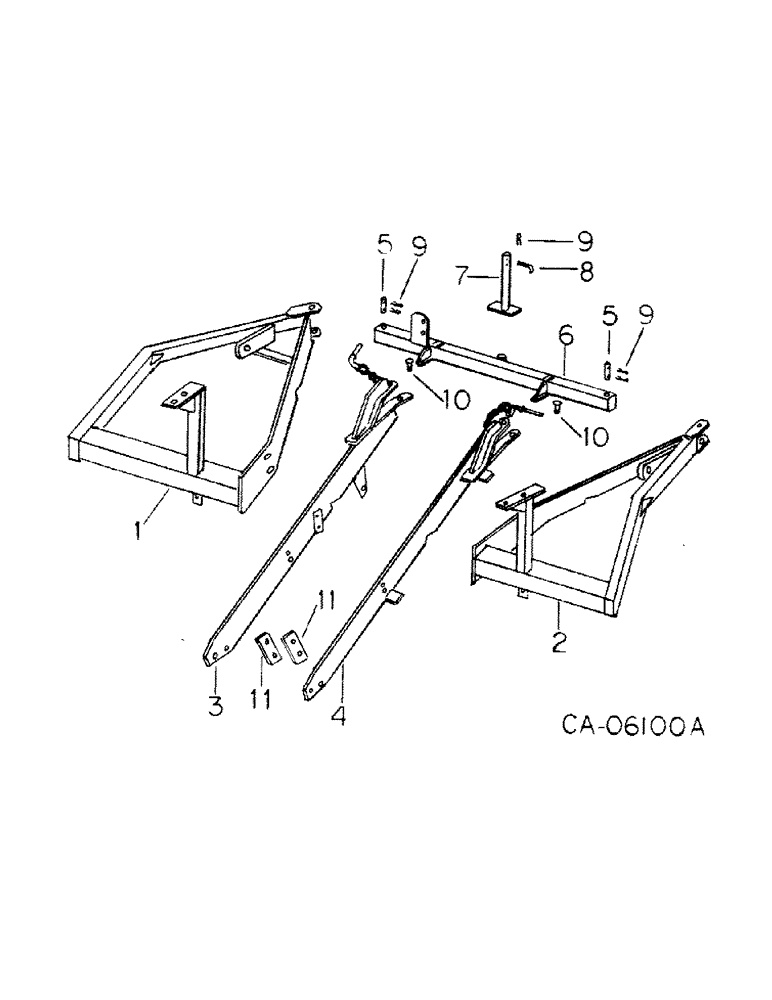

Схема запчастей Case IH 80 - (B-02) - MAIN FRAME, STAND AND CONNECTIONS (09) - CHASSIS
9
2
5
6
7
9
10
11
1
8
5
11
3
4
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

136296C1

FRAME

ASSY, support LH

1шт.

2

136297C1

FRAME

ASSY, support RH

1шт.

3

136293C1

FRAME

ASSY, LH, side bar, 3/8 in.

1шт.

4

136294C1

FRAME

ASSY, RH, side bar, 3/8 in.

1шт.

5

467617R1

PIN

pivot

2шт.

6

136295C1

BAR

ASSY, cross

1шт.

7

136305C1

STAND

ASSY, parking

1шт.

8

136320C1

PIN

W/ HAIR PIN

1шт.

9

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

10

625691R1

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap, for leveling

2шт.

11

136303C1

BAR

spacer

2шт.
