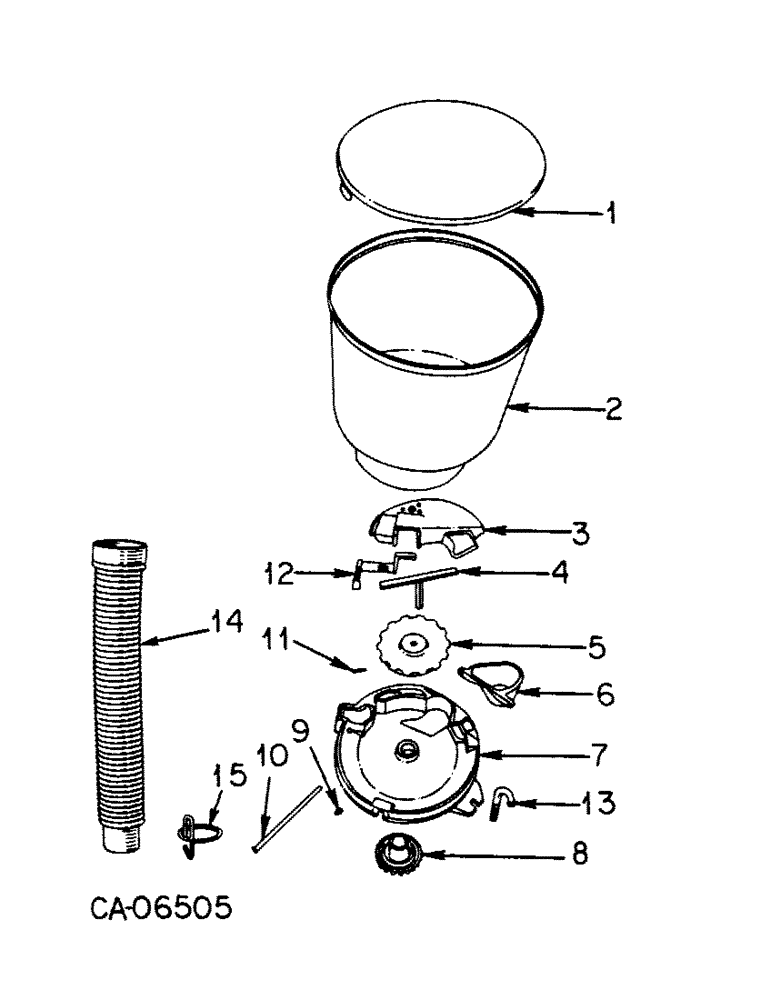

Запчасти Case IH 80 (B-09) - FERTILIZER HOPPER AND CONNECTIONS (09) - CHASSIS

1

625016R2

COVER

LTD, fertilizer hopper, for hopper 625017R2

2шт.

1

462555R1

COVER

LTD, fertilizer hopper, for hopper, 462554R1

2шт.

2

625017R2

HOPPER

fibre-glass fertilizer, 115 lb capacity

2шт.

2

462554R1

HOPPER

fibre-glass fertilizer, 170 lb capacity

2шт.

120584

SCREW, 1/4-20 x 3/4 cdp slt-rd-hd mach

6шт.

445141

NUT

1/4 in. cdp spring

6шт.

625533R1

WASHER

9/32 x 1 x 18 ga cdp

6шт.

3

625013R1

COVER ASSY

PLATE, rotary gate cover

2шт.

18771R1

BOLT,Hex, 5/16"-18 x 3", G2

5/16-18 x 3 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

624607R91

ACTUATOR

AGITATOR ASSY

2шт.

5

622489R11

RIM

WHEEL W/PIN, feed, light, 14 teeth

2шт.

5

NC316X

WHEEL

W/PIN, feed, medium, 7 teeth

2шт.

5

NC115X

WHEEL

W/PIN, feed, heavy, 7 teeth

2шт.

6

624600R1

PIPE CLAMP

SPOUT

2шт.

110502

SCREW,Slotted Rd Hd, #10-24 x 3/4"

10-24 x 3/4 slt-rd-hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

110633

NUT,#10-24

4шт.

7

625012R11

BOTTOM

W/FITTING, 125617, hopper

2шт.

Q817

PIN

5/16 x 6 dld-std-hd

2шт.

21628R1

PIN

1/8 x 3/4 znd self-opening cot.

2шт.

8

3567A

GEAR

bevel, 18 teeth

2шт.

9

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type lub

2шт.

10

467305R1

PIN

hopper bottom pivot

2шт.

177623

PIN, 1/8 x 3/4 znp cot.

4шт.

11

N62414

PIN,3.96mm OD x 28mm L

feed drive wheel

2шт.

12

625298R1

CHOKE

GATE, rotary

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 znd hex-hd mach

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 znp wing

2шт.

13

623088R1

HOOK

PIN, hopper hold-down

2шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga znd

2шт.

623084R1

WING NUT

NUT, 3/8-16 cdp wing

2шт.

14

526274R92

KIT

HOSE ASSY, rubber, 90 corrugations, includes ref no.

15шт.

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, hose upper

2шт.

15

526269R1

FASTENER

CLIP, retaining

2шт.

19505R1

BOLT,1/4" - 20 x 1", Class 2

1/4-20 x 1 cdp step

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

625533R1

WASHER

9/32 x 1 x 18 ga cdp

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.
