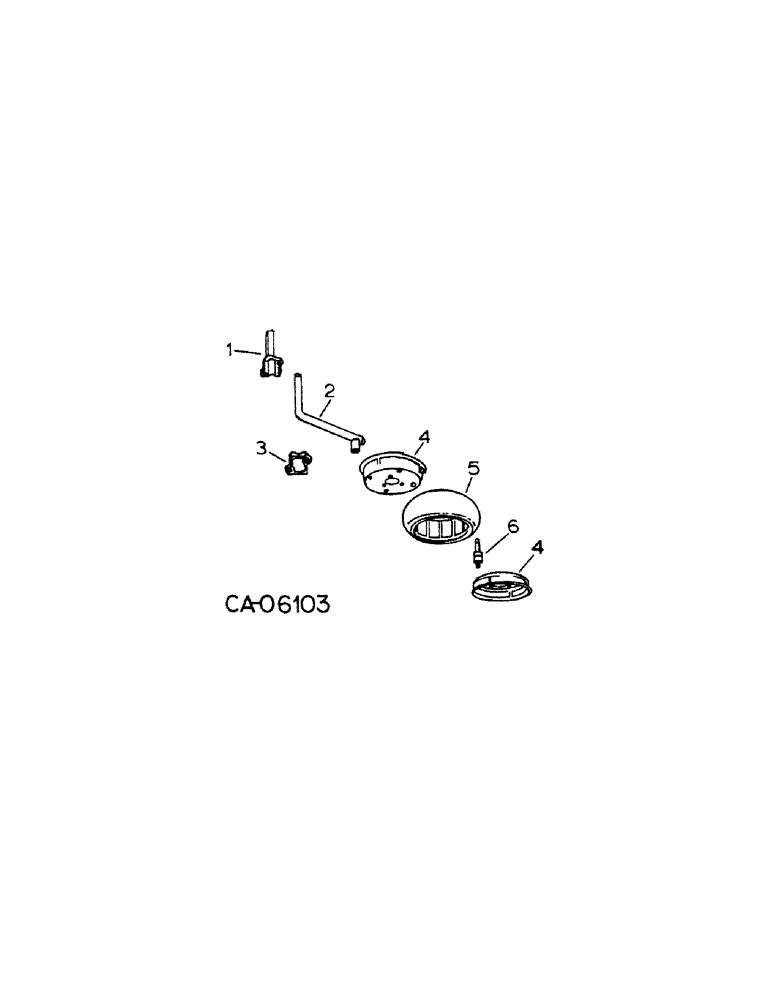

Запчасти Case IH 80 (B-05) - GAUGE WHEEL (09) - CHASSIS

1

30790BA

EXTENSION

tool bar 8 in.

2шт.

2

136309C1

SUPPORT ASSY.

STANDARD ASSY, gauge wheel RH

1шт.

2

136308C1

SUPPORT ASSY.

STANDARD ASSY, gauge wheel LH

1шт.

3

510918R1

CLAMP

CAP, extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8-11 x 2-1/2 znd sq-hd mach

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

4

526768R1

WHEEL

RIM, gauge wheel

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

14шт.

5

516492R1

TYRE/TIRE

TIRE, gauge wheel

2шт.

6

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSY, gauge wheel

2шт.

1279445C91

WHEEL ASSY.

WHEEL ASSY, gauge, composed of

2шт.

526768R1

WHEEL

RIM, gauge wheel

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

7шт.

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSY, gauge wheel

1шт.

516492R1

TYRE/TIRE

TIRE, 4 x 12 zero pressure

1шт.
