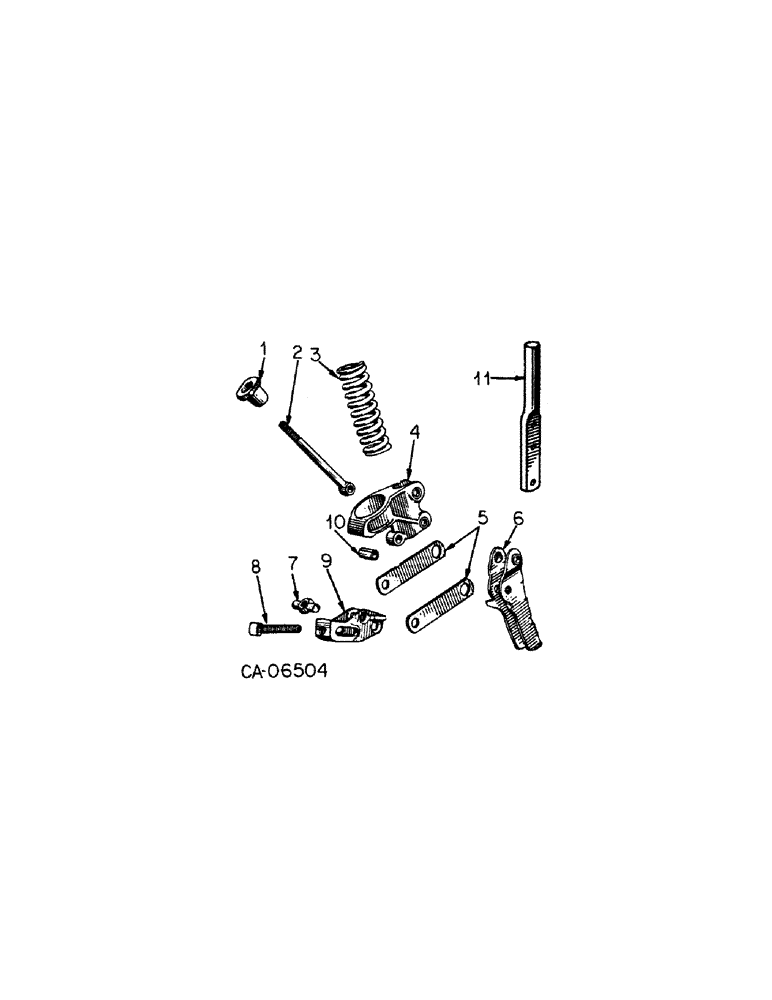

Запчасти Case IH 80 (B-05[B]) - SPRING TRIP (09) - CHASSIS

489657R91

SPRING TRIP ASSY, 16 style

8шт.

1

5105BB

NUT

WASHER, spring

8шт.

2

27018B

ROD

spring

8шт.

104201

TRACK SHOE

3/8 x 1-1/2 90 deg csk-hd solid

8шт.

3

15282BA

SPRING

1-11/16 OD, 5-1/4 in. long 10-1/4 coils

8шт.

4

1694BA

BRACKET

spring

8шт.

45-728

RIVET,But Hd, 7/16" x 1 3/4"

7/16 x 1-3/4 button-hd small solid

16шт.

5

27016BA

STRIP

STRAP

16шт.

135203

RIVET,Csk, 7/16" x 3/4"

7/16 x 3/4 C-Z 90 deg csk-hd solid

16шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

16шт.

6

30811B

SHANK

slotted

8шт.

20813B

RIVET, 1/2 x 1-3/8 std-pin-hd

8шт.

7

27017B

PIVOT

TRUNNION

8шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

16шт.

8

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

ASSY, adjusting

8шт.

120396

WASHER

.531 x 1.062 x .074 znd

8шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 znd slt hex

8шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

8шт.

9

1695BA

YOKE

adjusting

8шт.

46-724

RIVET,Csk, 7/16" x 1 1/2"

7/16 x 1-1/2 90 deg csk-hd solid

8шт.

10

27326BA

SPACER

BUSHING

8шт.

11

489729R1

STANDARD, straight short

8шт.
