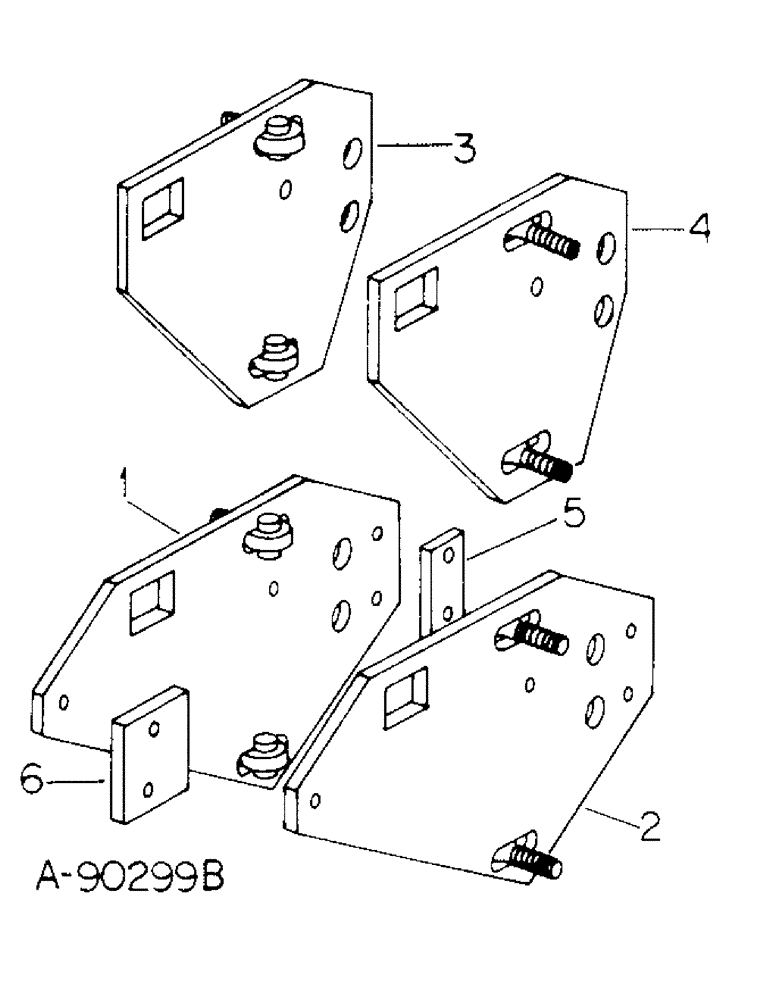

Запчасти Case IH 78 (AM-06) - ADAPTER PLATES

1

541559R1

PLATE ASSY, adapter left, note A, will work for 489715R1

1шт.

524899R1

BOLT, 5/8 x 1-3/4 znd sq-nk crg, 2 not used on 706 and 756 diesel tractors

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 2 used on 706 and 756 diesel tractors only

1шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

2шт.

280954

NUT,3/4"-10, G5

2шт.

491332R1

BOLT, frame plate

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

623077R1

NUT, 5/8-11 cdp hex. jam

1шт.

1

58652C1

PLATE ASSY, adapter left, note C

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

541560R1

PLATE ASSY, adapter right, note A, will work for 489716R1

1шт.

524899R1

BOLT, 5/8 x 1-3/4 znd sq-nk crg, 2 not used on 706 and 756 diesel tractors

3шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 2 used on 706 and 756 diesel tractors only

1шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

2шт.

280954

NUT,3/4"-10, G5

2шт.

491332R1

BOLT, frame plate

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

623077R1

NUT, 5/8-11 cdp hex. jam

1шт.

2

58653C1

PLATE ASSY, adapter right, note C

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

544240R1

PLATE ASSY, adapter left, note B

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

2шт.

280954

NUT,3/4"-10, G5

2шт.

4

544241R1

PLATE ASSY, adapter right, note B

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

58649C1

BAR

front spacer, note C

2шт.

6

58650C1

BAR, rear spacer, note C

2шт.
