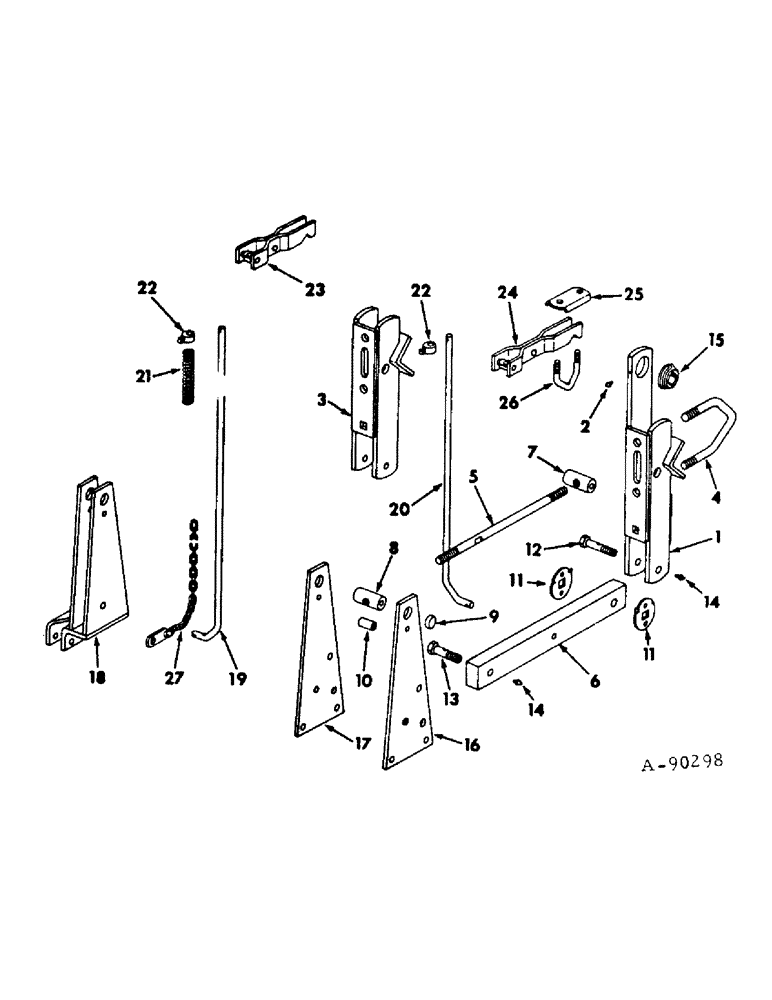

Запчасти Case IH 78 (AM-05) - PARALLEL LINKAGE

1

489693R1

BRACKET

ASSY, bearing head, 1 per row

1шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type lub, 1 per bracket

1шт.

3

489699R1

BRACKET

ASSY, head, not for bearing, 2 for four row only

1шт.

4

524046R3

BOLT,U, 7/8" - 9 x 7 3/4"

U-BOLT, head bracket, 1 per bracket

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

5

489701R1

TURNBUCKLE

ROD, upper link, 4 for two row, 8 for four and six row

1шт.

6

489702R1

BAR, lower link, 4 for two row, 8 for four and six row

1шт.

7

483285R1

PIVOT ASSY.

SWIVEL, front upper link LH thread, 4 for two row, 8 for four and six row

1шт.

8

483286R1

PIVOT ASSY.

SWIVEL, rear upper link RH thread, 3 for two row, 7 for four and six row

1шт.

8

522510R1

BAR

SWIVEL

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z, RH inside gang plate assy

1шт.

9

522591R1

PLUG

upper link lock, 4 for two row, 8 for four and six row

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, 1 per plug

1шт.

10

483284R1

SPACER

4 for two row, 8 for four and six row

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach, 1 per spacer

1шт.

120384

WASHER,1/2"

LOCK, , 1 per spacer 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per spacer 1/2"-13, G5

1шт.

11

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

lower link and hd bracket wear, 8 for two row, 16 for four and six row

1шт.

12

487061R2

BOLT,Hex, 3/4" - 10 x 3"

lower link front pivot, 4 for two row, 8 for four and six row

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4 cdp hex. nylon insert, 1 per bolt

1шт.

13

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower link rear, 4 for two row, 8 for four and six row

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4 cdp hex. nylon insert, 1 per bolt

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF straight lub, 1 per bolt

1шт.

15

523328R1

BEARING ASSY,2.8125" OD x 1"

rockshaft outer, 1 per row

1шт.

16

483282R3

PLATE, side, tapped, 2 for two row, 6 for four and six row

1шт.

17

483283R3

PLATE, side, not tapped, 2 for two row, 6 for four and six row

1шт.

18

489704R2

PLATE ASSY, inside linkage right

1шт.

18

489703R2

PLATE ASSY, inside linkage left

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 C-Z hex-hd mach

12шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

16шт.

19

489710R1

ROD

pressure, inner

2шт.

13086R1

PIN, 3/16 x 1 self-opening cot.

4шт.

20

489711R1

ROD

pressure, outer, 2 for two row 6 for four and six row

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening, 2 per rod 3/16" x 1"

1шт.

21

PO3A

SPRING

cushion

2шт.

22

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, 110447, rod, 4 for two row, 8 for four and six row

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set, 1 per collar

1шт.

23

489738R91

ARM

ASSY, inner lift, 4 for two and four row, 2 for six-row

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 rd-hd, 1 per arm

1шт.

24

467645R91

ARM ASSY.

ARM ASSY, long lift, 4 for four-row, 6 for six-row

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 rd-hd, 1 per arm

1шт.

25

525687R1

CHANNEL

CLIP, 4 for two row, 8 for four and six row

1шт.

26

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lift arm, 4 for two row, 8 for four and six row

1шт.

27

489712R91

CHAIN (AG)

CHAIN ASSY, depth

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 rd-hd

2шт.
