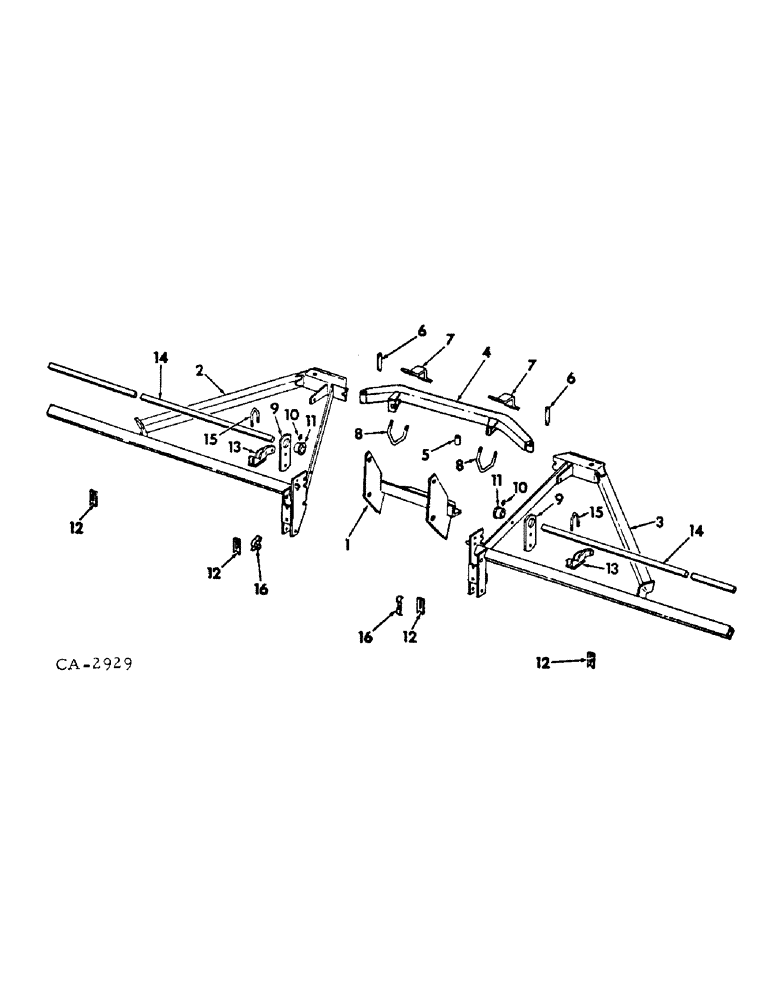

Запчасти Case IH 78 (AM-04) - MAIN FRAME AND CONNECTIONS

1

544234R1

SUPPORT

PICKUP ASSY, front attaching

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 znd use-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

489671R2

FRAME ASSY, main left, for two and four row cultivators

1шт.

2

489732R2

FRAME ASSY, main left, for six-row cultivators

1шт.

3

489672R2

FRAME ASSY, main right, for two and four row cultivators

1шт.

3

489733R2

FRAME ASSY, main right, for six-row cultivators

1шт.

4

544237R1

TUBE ASSY, front

1шт.

18731R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 2

BOLT, 3/4-10 x 2 znd sq-nk crg

2шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

2шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

2шт.

280954

NUT,3/4"-10, G5

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

5

462425R1

SPACER

front tube slide

1шт.

21953R1

HEADED PIN,3/4" x 6"

PIN, 3/4 x 6 C-Z std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

467617R1

PIN

main frame hinge

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

7

489669R1

CLAMP, tube

2шт.

8

489670R1

BOLT

U-BOLT

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

9

489686R1

BAR, bearing head bracket

2шт.

19060R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT, 1/2-13 x 1-1/2 C-Z no. 3 plow

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

2шт.

11

523327R1

BEARING, rockshaft inner 3/8 sq

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 16 ga C-Z

2шт.

12

489687R1

BAR

STRAP, linkage lock

4шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 C-Z sq-nk crg

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

13

489689R1

ARM

ASSY, rockshaft

2шт.

14

489688R2

ROCKSHAFT, 65 in. long, for two and four row cultivators

2шт.

14

489735R1

ROCKSHAFT, 82 in. long, for six-row cultivators

2шт.

15

525037R1

BOLT,U, 5/8" x 4 3/8"

U-BOLT, 5/8

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

16

467804R1

CLAMP, hyd hose, tractor channel, Serial Range: 1968-1972

2шт.

16

490379R1

CLAMP, hyd hose, tractor channel, 1972 and since

2шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4 x 1-1/2 znd hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.
