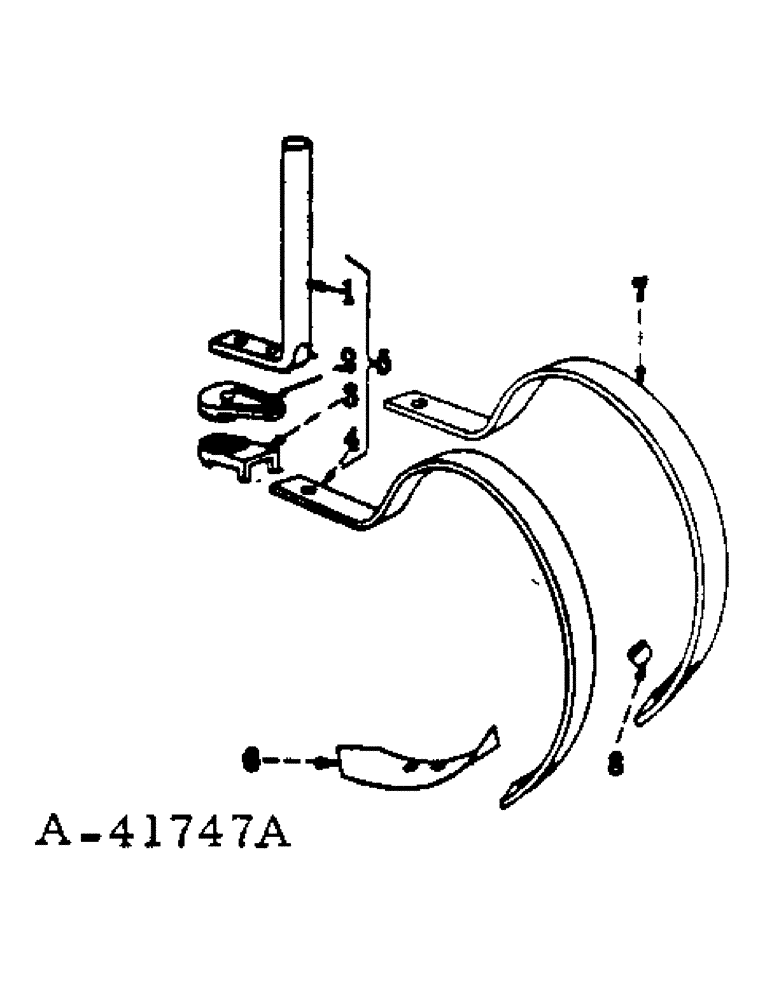

Запчасти Case IH 78 (AM-18) - SPRING TEETH, SINGLE AND DOUBLE

1

522087R2

ROD

STANDARD, long

1шт.

1

522286R2

SUPPORT ASSY.

STANDARD, short

1шт.

1

489724R1

STANDARD, extra short

1шт.

2

522085R1

SPRING WASHER

adjusting

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, for single spring tooth

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , For single spring tooth 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., for single spring tooth

1шт.

3

522086R2

ADJUSTER

BRACKET, adjusting

1шт.

4

522088R2

SPRING

TOOTH, spring, 1-3/4 in. wide, 3/8 in. thick, 21 for four-row, 19 for six-row

1шт.

5

489658R91

TRIP

TOOTH ASSY, short standard single spring, 3 for four row only

1шт.

5

522062R92

TOOTH

ASSY, long standard single spring, 3 for two row, 10 for four row

1шт.

5

522282R92

TOOTH

ASSY, short standard single spring, 8 for four row only

1шт.

5

466865R91

TOOTH

ASSY, long standard double spring, 10 for four-row, 6 for six-row

1шт.

5

489659R91

TRIP

TOOTH ASSY, short standard double spring, 3 for four-row, 1 for six-row

1шт.

5

466864R91

TOOTH

ASSY, short standard double spring, 8 for four row, 12 for six-row

1шт.

6

25702BA

SHOVEL

double point, 2-1/2 x 11 in.

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, special shovel and sweep, 38 for 18 equipment, 42 for 21 equipment 4 row, 32 for 16 equipment, 38 for 19 equipment 6 row

1шт.

490648R1

CLIP

sweep bolt, 1 per 2 bolts

1шт.

271501

SOCKET

NUT, 7/16-24 znd hex., 1 per bolt

1шт.

25548BBS

BOLT ASSY, special sweep shovel, double spring tooth, 1 per shovel

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex., double spring tooth, 1 per shovel

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , Double spring tooth, 1 per shovel 7/16"

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z, double spring tooth, 1 per shovel

1шт.

25596BBX

BOLT

ASSY, 7/16 x 2 special sweep and shovel, double spring tooth, 1 per shovel

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex., double spring tooth, 1 per shovel

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , Double spring tooth, 1 per shovel 7/16"

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z, double spring tooth, 1 per shovel

1шт.

7

466866R1

TOOTH

outer spring, 21 for four-row, 19 for six-row

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4znd hex-hd mach

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

8

SA2344

SPACER,3/8" Pipe x 7/16"

outer spring tooth, 21 for four-row, 19 for six-row

1шт.
