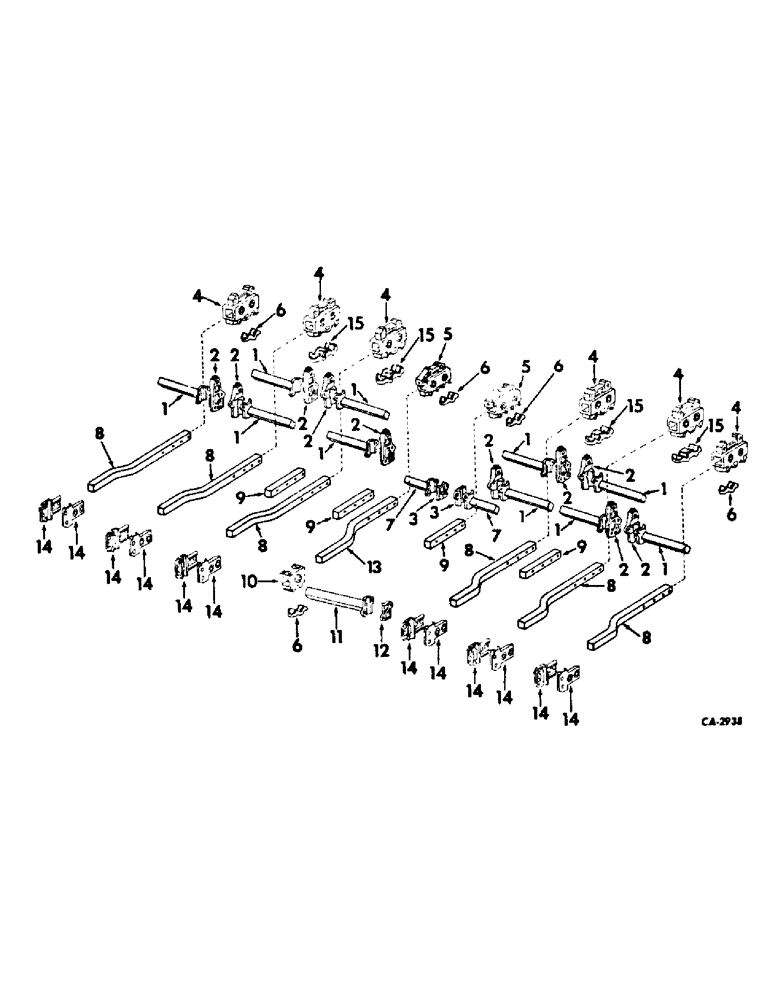

Запчасти Case IH 78 (AM-17) - SQUARE BARS, EXTENSIONS & CLAMPS, 16, 19 & 19 DOUBLE SPRING TEETH EQUIP., 6-ROW CULTIVATORS (72- )

Service parts for 16 equipment, consists of all unmarked parts and those marked unit A

1шт.

Service parts for 19 equipment, consists of all unmarked parts and those marked unit B

1шт.

Service parts for 19 double spring teeth equipment, consists of all unmarked parts and those marked unit C

1шт.

1

542041R1

EXTENSION

11-5/8 x 1-3/8 sq tool bar

10шт.

2

483255R1

CAP

1-3/8 sq extension w/sq for shield

10шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8-11 x 2-1/2 znd sq-hd mach

20шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

20шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

10шт.

3

510918R1

CLAMP

CAP, 1-3/8 sq extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8-11 x 2-1/2 znd sq-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

4

542040R1

CLAMP

outer linkage tool bar attaching

6шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 znd hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

16шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

16шт.

5

489640R1

CLAMP, inner linkage tool bar attaching

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

16шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

547750R1

CLAMP

cap, 4 for unit A, 5 for units B & C

1шт.

7

489644R1

EXTENSION, 6-1/2 x 1-3/8 sq tool bar

2шт.

8

544231R1

BAR, tool outer, 4 for unit A, 6 for units B & C

1шт.

9

489737R1

BAR, short narrow filler, 4 for unit A, 1 for units B & C

1шт.

10

542995R1

CLAMP

tool bar extension, units B & C

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 znd hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set

1шт.

11

542041R1

EXTENSION

11-5/8 x 1-3/8 sq tool bar, unit C

1шт.

12

510918R1

CLAMP

CAP, 1-1/4 sq extension, unit C

1шт.

13

489736R1

BAR, no. 1 LH offset tool, units B and C

1шт.

14

542999R1

CLAMP

half, 8 for unit A, 12 for units B and C

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, 1 per clamp

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap, 1 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 1 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per clamp 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 1 per clamp

1шт.

15

542039R1

CLAMP

CAP, double clamp

4шт.

ATTACHMENT, six row cultivating, for 4 row wide to 6 row narrow, consists of

1шт.

511992R2

EXTENSION

10шт.

483255R1

CAP

4шт.

547750R1

CLAMP

4шт.

486391R1

BAR

4шт.
