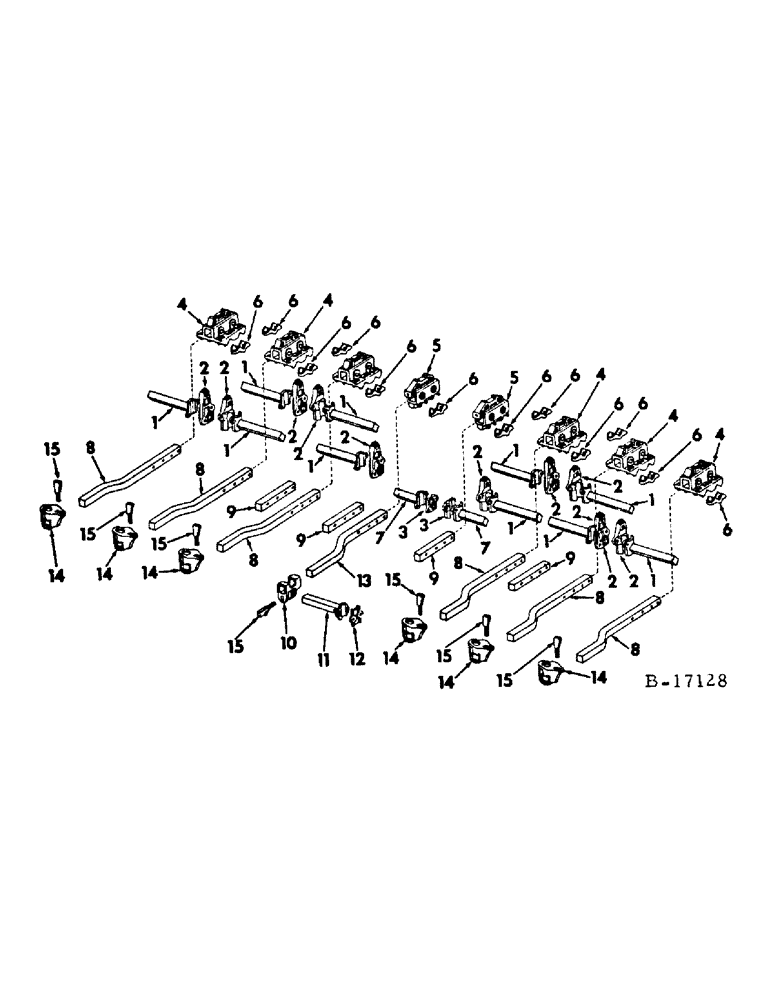

Запчасти Case IH 78 (AM-16) - SQUARE BARS, EXTENSIONS & CLAMPS, 16, 19 & 19 DOUBLE SPRING TEETH EQUIP., 6-ROW CULTIVATORS (68-72)

Service parts for 16 equipment, consists of all unmarked parts and those marked unit A

1шт.

Service parts for 19 equipment, consists of all unmarked parts and those marked unit B

1шт.

Service parts for 19 double spring teeth equipment, consists of all unmarked parts and those marked unit C

1шт.

1

511992R2

EXTENSION

10-1/2 x 1-3/8 sq tool bar

10шт.

2

483255R1

CAP

1-3/8 sq extension w/sq for shield

10шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

10шт.

3

510918R1

CLAMP

CAP, 1-3/8 sq extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

4

483254R3

CLAMP, outer linkage tool bar attaching

6шт.

5

489640R1

CLAMP, inner linkage tool bar attaching

2шт.

6

28256BB

CLAMP

cap

12шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd mach, in outer clamps

20шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

20шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd mach, in inner clamps

4шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

7

489644R1

EXTENSION, 6-1/2 x 1-3/8 sq tool bar

2шт.

8

486391R1

BAR, tool, outer, 4 for unit A, 6 for unit B and C

1шт.

9

489737R1

BAR, short narrow filler, 4 for unit A, 1 for unit B and C

1шт.

10

522556R1

CLAMP

tool bar extension, 1 for unit B and C

1шт.

11

521750R1

CLAMP

EXTENSION, 9-3/4 x 1-1/4 sq tool bar, 1 for unit C

1шт.

12

1779BB

CLAMP

CAP, 1-1/4 sq extension, 1 for unit C

1шт.

29822B

BOLT

1/2 x 2-3/4 sq-hd mach heat treated, 2 for unit C

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 for unit C 1/2"-13, G5

1шт.

13

489736R1

BAR, no. 1 LH offset tool, 1 for unit B, 1 for unit C

1шт.

14

522557R2

CLAMP

standard, 4 for unit A, 6 for unit B and C

1шт.

15

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 4 for unit A, 7 for unit B and C

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 4 for unit A; 7 for unit B and C 1/2"-13, G5

1шт.

ATTACHMENT, six row cultivating, from 4 row wide to 6 row narrow, consists of

1шт.

511992R2

EXTENSION

10шт.

483255R1

CAP

4шт.

547750R1

CLAMP

4шт.

486391R1

BAR

6шт.
