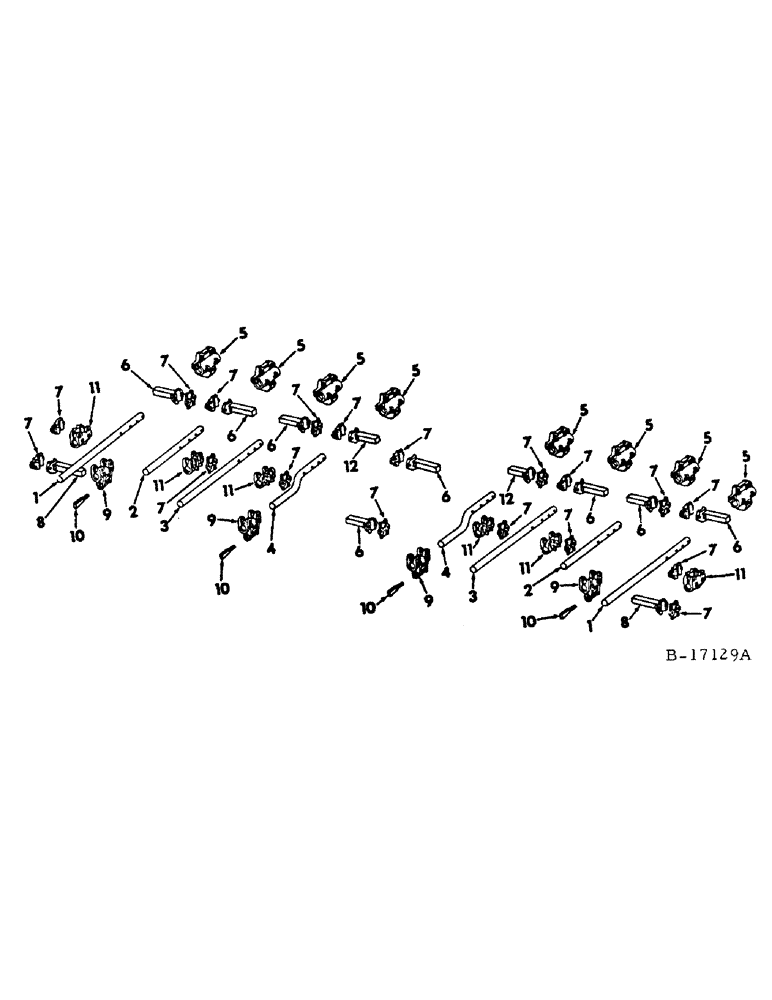

Запчасти Case IH 78 (AM-15) - ROUND BARS, EXTENSIONS AND CLAMPS, 18 EQUIPMENT, FOR FOUR-ROW CULTIVATORS

1

489649R1

BAR, round outer

2шт.

2

489650R1

BAR, round no. 3

2шт.

3

489651R1

BAR, round no. 2

2шт.

4

489653R1

BAR, no. 1 round short offset

2шт.

5

489641R2

CLAMP

round tool bar side plate

8шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

8шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set

16шт.

6

28236BB

CLAMP

EXTENSION, 7-3/4 x 1-1/4 sq tool bar

8шт.

7

1779BB

CLAMP

CAP, 1-1/4 sq extension

18шт.

29821B

BOLT, 1/2 x 2-1/2 sq-hd mach heat treated

12шт.

29822B

BOLT

1/2 x 2-3/4 sq-hd mach heat treated

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

36шт.

8

521750R1

CLAMP

EXTENSION, 9-3/4 x 1-1/4 sq tool bar

2шт.

9

1846BX

CLAMP

ASSY, tool bar extension

4шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set

8шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

10

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

11

1869BX

CLAMP

ASSY, standard

6шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set

6шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

12

28164BB

CLAMP

EXTENSION, 6-1/2 x 1-1/4 sq

2шт.
