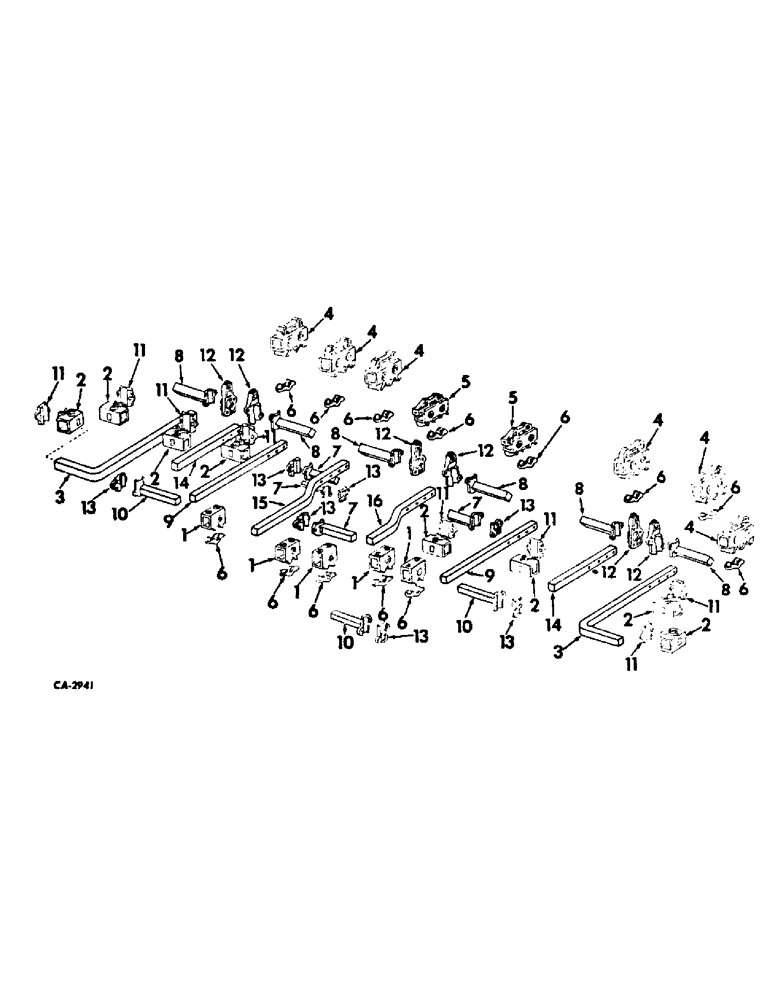

Запчасти Case IH 78 (AM-14) - SQUARE BARS, EXTENSIONS, AND CLAMPS, 18 AND 21 EQUIPMENT, FOR FOUR-ROW CULTIVATORS (1972 AND SINCE)

Service parts for 18 equipment, consists of all unmarked parts and those marked unit A

1шт.

Service parts for 21 equipment, consists of all unmarked parts and those marked unit B

1шт.

1

542995R1

CLAMP

tool bar extension, 2 for unit A, 5 for unit B

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 znd hex-hd cap, 2 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 2 per clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per clamp

1шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set, 1 per clamp

1шт.

2

544221R1

CLAMP

sq-tool bar standard

8шт.

3

489648R1

BAR, tool no. 4

2шт.

4

542040R1

CLAMP

outer linkage tool bar attaching

6шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

12шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW 5/8-11 x 2-1/2 znd hex-hd cap

12шт.

5

489640R1

CLAMP, inner linkage tool bar attaching

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

4шт.

6

547750R1

CLAMP

cap, 10 for unit A, 13 for unit B

1шт.

7

489644R1

EXTENSION, 6-1/2 x 1-3/8 sq tool bar

4шт.

8

30790BA

EXTENSION

8-5/8 x 1-3/8 sq tool bar

6шт.

9

489647R1

BAR

tool no. 2

2шт.

10

511992R2

EXTENSION

10-1/4 x 1-3/8 tool bar, 2 used 21 equipment, 3 used 21 equipment w/double spring teeth

1шт.

11

544222R1

CAP

round standard

8шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

16шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set

8шт.

12

483255R1

CAP

1-3/8 sq extension w/sq for shield

6шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

6шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

12шт.

13

510918R1

CLAMP

CAP, 1-3/8 sq extension, 4 for unit A, 6 for unit B, 7 for unit B w/double spring tooth

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 znd sq-hd mach, 2 per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per cap

1шт.

14

489645R1

BAR, tool no. 3

2шт.

15

489652R1

BAR, no. 1 LH long offset

1шт.

16

489646R1

BAR, tool short offset no. 1 RH

1шт.
