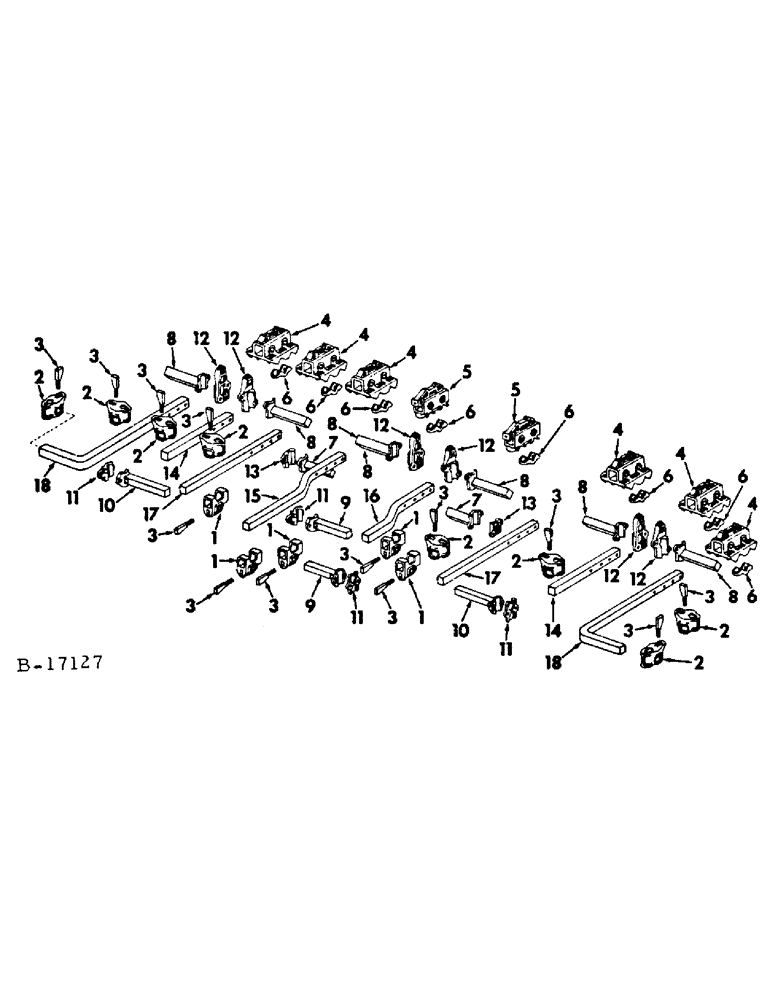

Запчасти Case IH 78 (AM-13) - SQUARE BARS, EXTENSIONS AND CLAMPS, 18 AND 21 EQUIPMENT, FOR FOUR-ROW CULTIVATORS (1968 TO 1972)

Service parts for 18 equipment, consists of all unmarked parts and those marked unit A

1шт.

Service parts for 21 equipment, consists of all unmarked parts and those marked unit B

1шт.

1

522556R1

CLAMP

tool bar extension, 2 for unit A, 5 for unit B

1шт.

2

522557R2

CLAMP

standard

8шт.

3

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 10 for unit A, 13 for unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 10 for unit A, 13 for unit B 1/2"-13, G5

1шт.

4

483254R3

CLAMP, outer linkage tool bar attaching

6шт.

5

489640R1

CLAMP, inner linkage tool bar attaching

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, for inner clamps

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

6

28256BB

CLAMP

cap

8шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd mach, outer clamps

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

12шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd mach, inner clamps

4шт.

7

489644R1

EXTENSION, 6-1/2 x 1-3/8 sq tool bar

2шт.

8

30790BA

EXTENSION

8-5/8 x 1-3/8 sq tool bar

6шт.

9

28236BB

CLAMP

EXTENSION, 7-3/4 x 1-1/4 sq tool bar, 2 for unit B only

1шт.

10

521750R1

CLAMP

EXTENSION, 9-3/4 x 1-1/4 sq tool bar, 2 for single spring tooth, 3 for double spring tooth

1шт.

11

1779BB

CLAMP

CAP, 1-1/4 sq extension, 4 for single spring tooth, 5 for double spring tooth

1шт.

29822B

BOLT

1/2 x 2-3/4 sq-hd mach heat treated, 8 for single spring tooth, 10 for double spring tooth

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 8 for single spring tooth, 10 for double spring tooth 1/2"-13, G5

1шт.

12

483255R1

CAP

1-3/8 sq extension w/sq for shield

6шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

6шт.

13

510918R1

CLAMP

CAP, 1-3/8 sq extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

16шт.

14

489645R1

BAR, tool no. 3

2шт.

15

489652R1

BAR, no. 1 LH long offset, see note B

1шт.

16

489646R1

BAR, tool short offset, 2 for unit A, 1 for unit B

1шт.

17

489647R1

BAR

tool no. 2

2шт.

18

489648R1

BAR, tool outer

2шт.
