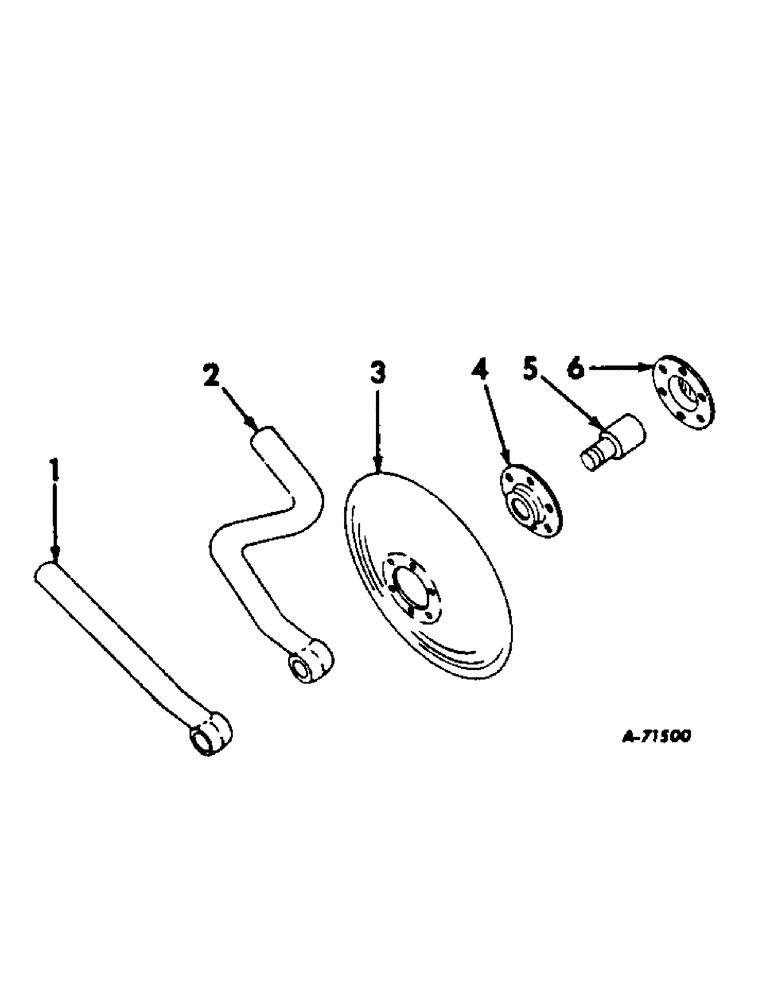

Запчасти Case IH 78 (AM-08) - DISK HILLER, WITH PRECISION BEARINGS

1

469373R1

SUPPORT ASSY.

STANDARD, straight, for 13 in. disk

1шт.

1

487296R1

STANDARD, straight, for 14 and 16 in. disk

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt-set

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD, offset, for 13 in. disk

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt-set

1шт.

3

469372R1

DISC,13"

DISK, 13 in. diameter

1шт.

3

487298R1

DISC

DISK, 14 in. diameter

1шт.

3

468011R1

DISC

DISK, 16 in. diameter

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

4

468009R1

RETAINER

HOUSING, bearing, open half

1шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

468008R1

COVER

HOUSING, bearing, closed half, for 13 in. disk

1шт.

6

487081R1

COVER

HOUSING, bearing, closed half, for 14 and 16 in. disk

1шт.
