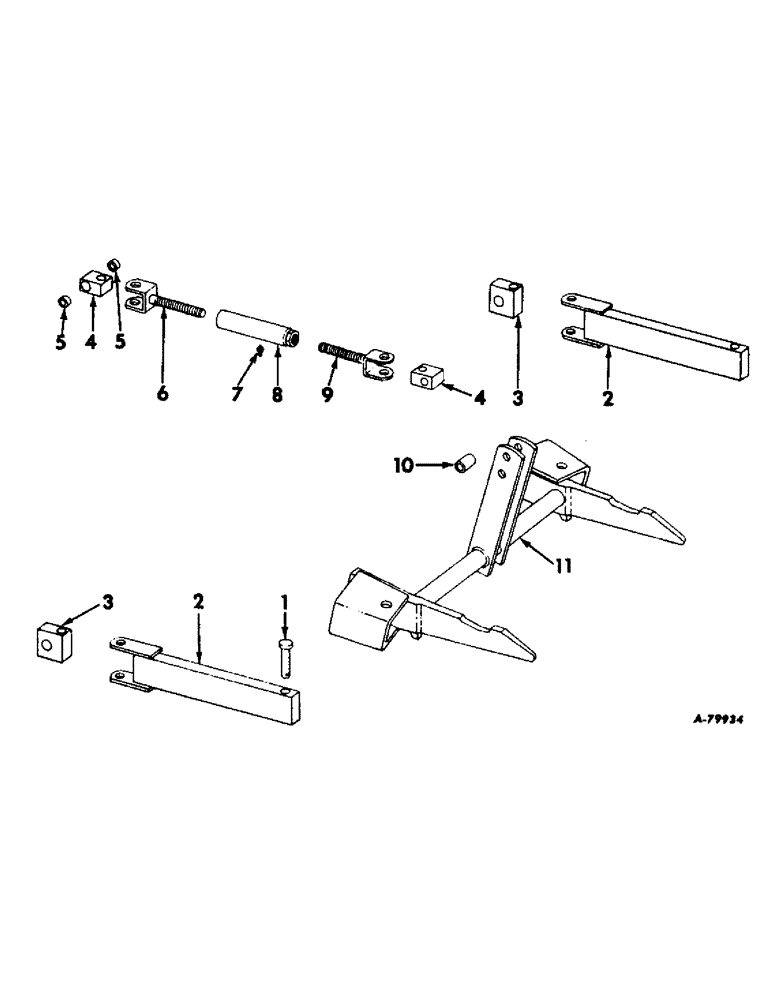

Запчасти Case IH 70 (K-6) - COUPLING BEAM AND CONNECTIONS, TWO POINT FAST HITCH

1

477010R1

PIN, lower link front

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

2

477011R91

BAR ASSY, lower link

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

33621A

PIN, 3/4 x 4-13/16 in. dld-std hd

2шт.

3

468046R1

TRUNNION, lower link bar

2шт.

4

468047R1

TRUNNION, turnbuckle

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

650355R1

AXLE PIN

PIN, 3/4 x 3-3/4 in. dld-std-hd front

1шт.

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 3-1/2 in. dld-std-hd rear

1шт.

5

495827R1

SPACER,1" Tube x 1/2"

upper link support

2шт.

12429R1

PIN, 7/16 x 1-3/4 in. cotter

2шт.

6

477013R91

YOKE ASSY, RH thread upper link

1шт.

516773R1

NUT

upper link rod

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q1237

PIN,3/4" x 2 1/2"

3/4 x 2-1/2 in. dld-std-hd

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

8

526904R1

TURNBUCKLE

upper link

1шт.

9

477015R91

YOKE ASSY, LH thread upper link

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q1237

PIN,3/4" x 2 1/2"

3/4 x 2-1/2 in. dld-std-hd

1шт.

10

462425R1

SPACER

upper link support

1шт.

11

477005R91

BEAM ASSY, coupling

1шт.

17750R1

BOLT (SPREADER)

BOLT, 3/4 x 1/4 in. mach

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.
