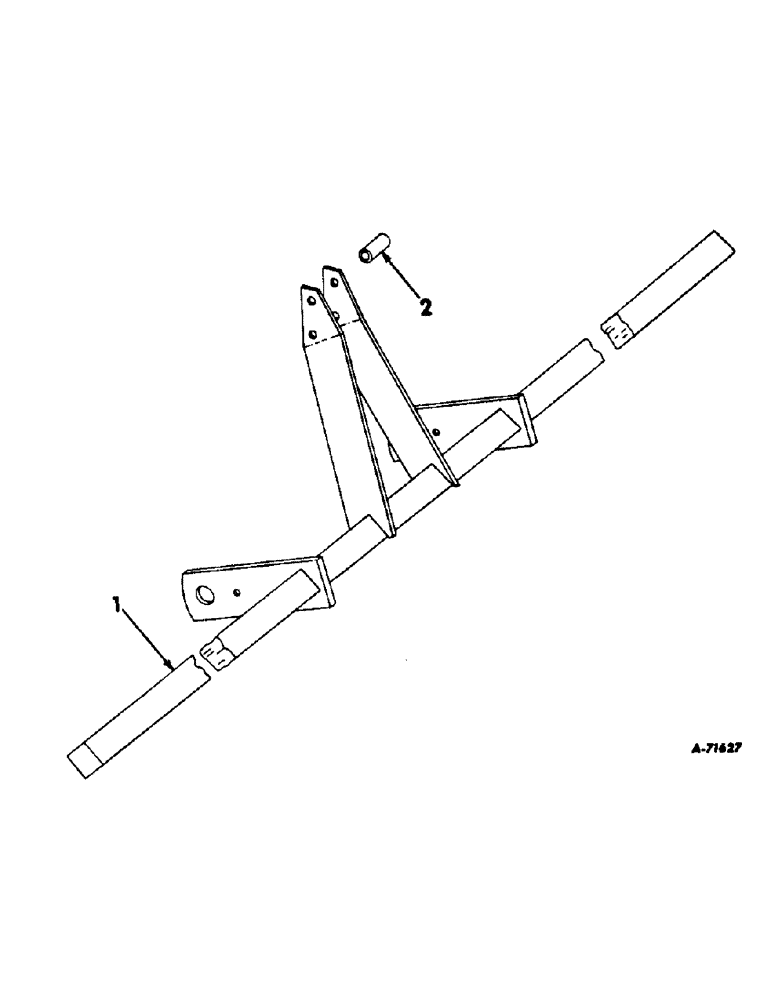

Запчасти Case IH 70 (K-4) - MAIN FRAME

1

468000R91

FRAME ASSY, main, order 481071R91, notes A and B

1шт.

1

481071R91

FRAME ASSY, main

1шт.

22022R1

BOLT, 3/4 x 3-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

462425R1

SPACER

1шт.

481074R1

BUSHING

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

Q3480

WASHER

1.031 x 1.500 x .105 pln

2шт.

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 3.500 pln hd type 1

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

495827R1

SPACER,1" Tube x 1/2"

2шт.
