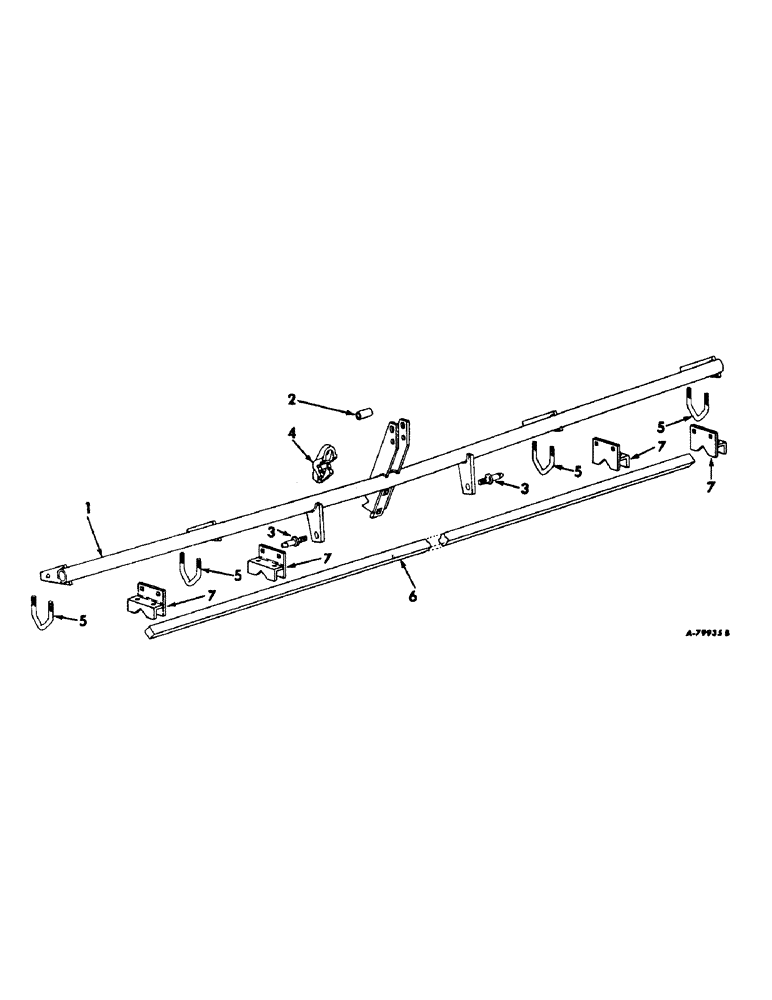

Запчасти Case IH 70 (K-3) - FRAME AND TOOL BAR

1

483321R91

FRAME ASSY, for 30 to 32 in. narrow-row or 36 to 40 in. wide-row cultivators

1шт.

2

462425R1

SPACER

upper link support

1шт.

2

17750R1

BOLT (SPREADER)

BOLT, 3/4 x 4-1/4 in. mach

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

472790R2

STUD

lower

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8 in. C-Z pltd

2шт.

131049

HYD CONNECTOR

1-1/8 in. C-Z pltd lock

2шт.

4

523962R2

CLAMP

CAP, frame center

1шт.

20294R1

BOLT, 7/8 x 5-1/2 in. sq-nk crg

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

5

526003R1

BOLT

U-BOLT, frame outer

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

8шт.

6

477002R1

TOOL BAR, main frame, 2-1/4 sq x 230 in. long, for 36 to 40 in. wide row cultivators

1шт.

6

524330R1

TOOL BAR, main frame, 2-1/4 in. sq x 192 in. long, for 30 and 32 in. narrow-row cultivator

1шт.

7

483324R91

BRACKET ASSY, clamp, for use with 483321R91 frame assembly

1шт.

15076R1

BOLT, 3/4 x 2 in. sq-nk crg

8шт.

220081

NUT

3/4 in.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.
