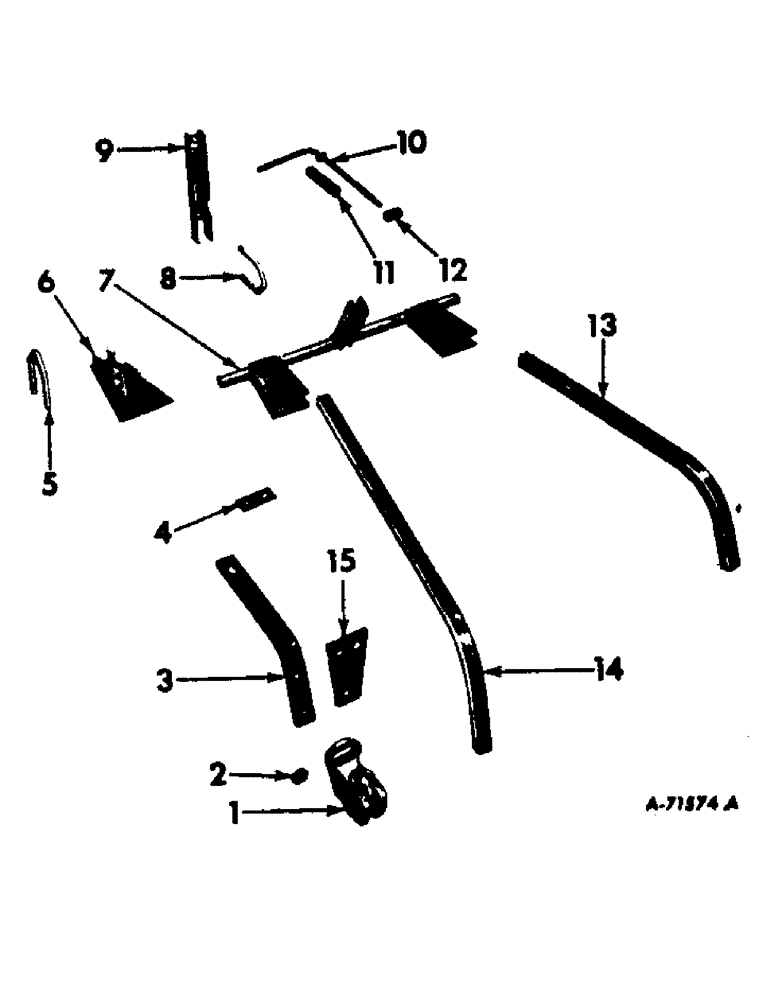

Запчасти Case IH 70 (K-2) - GANG AND DISK PITCH EXTENSION ATTACHMENT

1

468027R1

BRACKET

standard

2шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 crg type 1, for disk adjusting arm

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1, for shovel adjusting arm

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

6шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

523011R1

WASHER

serrated

2шт.

3

468028R1

ARM

disk adjusting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

468029R1

BAR

ANCHOR, disk adjusting arm

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 crg type 1

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

5

468015R1

BOLT,3/4" - 10 x 5.4"

U-BOLT, rockshaft bracket

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

6

468012R91

BRACKET ASSY, rockshaft and disk

1шт.

7

468016R21

ROCKSHAFT ASSY, shovel arm

1шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

8

461985R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, adjusting crank bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

9

468020R11

BRACKET ASSY, adjusting crank

1шт.

10

468023R31

ROD

CRANK ASSY, adjusting

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

3/8 jam type 5

1шт.

11

PO102

SPRING

crank adjusting

1шт.

12

468024R1

PIVOT

SWIVEL, adjusting crank

1шт.

13

468026R1

ARM

shovel adjusting short

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

2шт.

14

468025R1

ARM

shovel adjusting long

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

2шт.

15

477023R1

EXTENSION, arm disk attaching, special

1шт.

15112R1

BOLT (SPREADER)

BOLT, 5/8 x 2-1/2 in. sq-nk crg

1шт.

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

SCREW, 5/8 x 1-1/8 in. cap

1шт.
