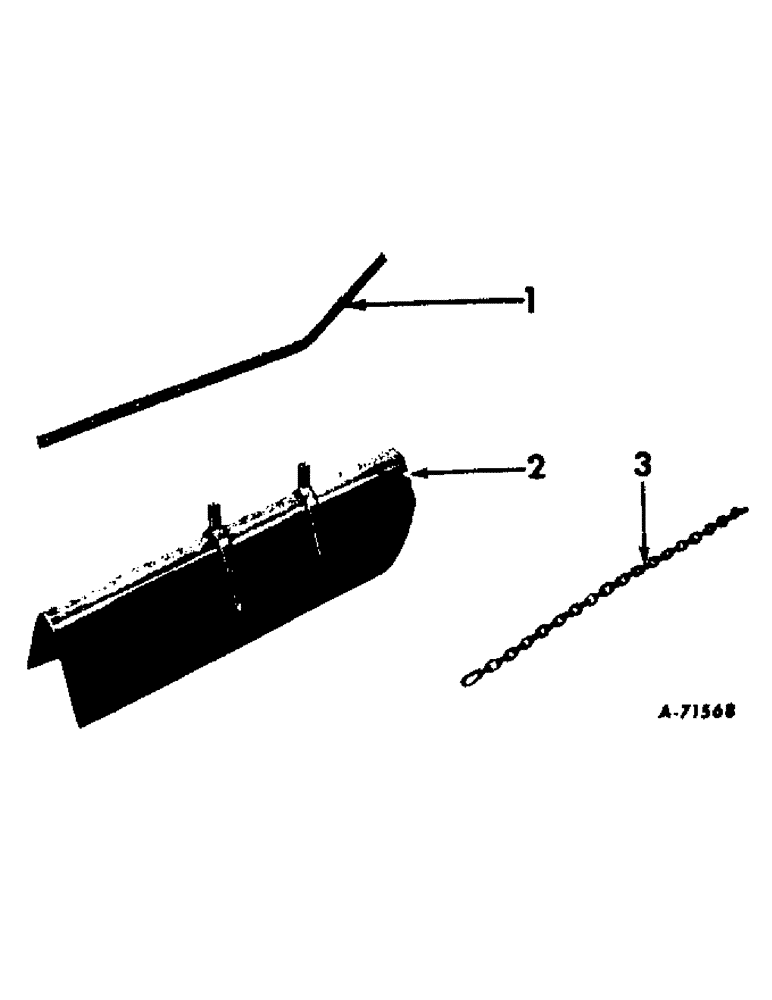

Запчасти Case IH 70 (K-7) - SHIELD

1

468030R11

SUPPORT

ASSY, shield

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

511882R92

SHIELD

ASSY

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

3/8 x 1-1/8 type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

468032R1

CHAIN (AG)

CHAIN, shield adjusting

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

174732C1

REFLECTOR

amber

1шт.

175311C1

REFLECTOR

red

2шт.
