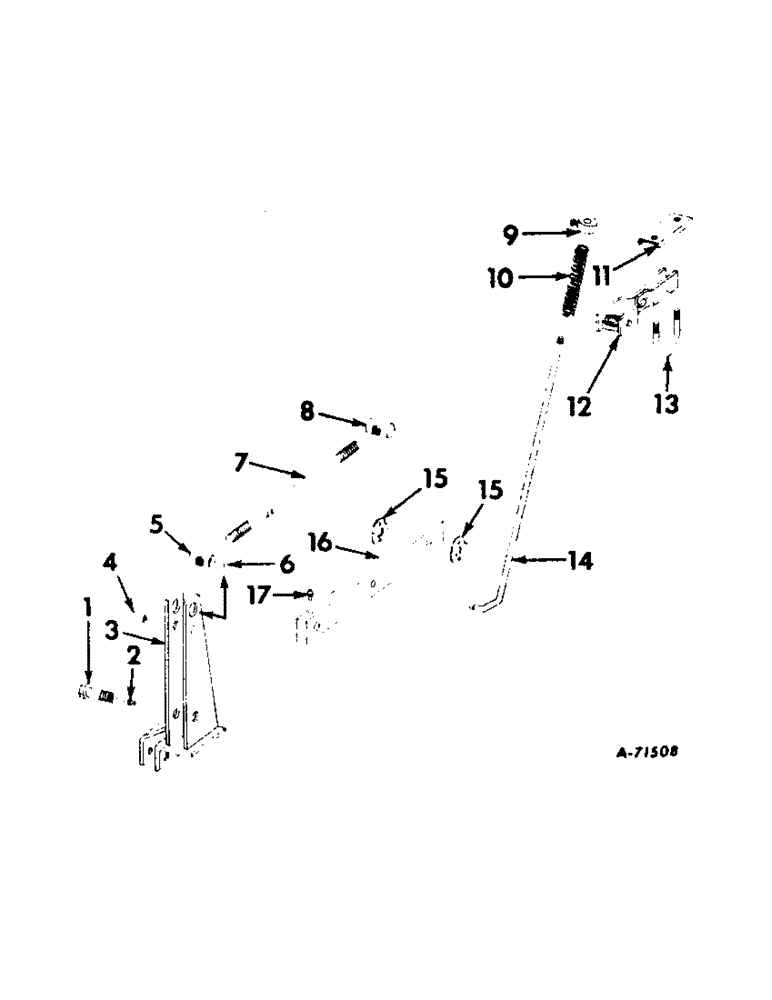

Запчасти Case IH 68 (J-10) - FIRST GANG PARALLEL LINKAGE

1

522544R2

BOLT

3/4 x 2-1/2 in. mach, special

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

3

467637R91

PLATE, tool bar attaching LH

1шт.

3

467638R91

PLATE, tool bar attaching RH

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. crg, special, heat-treated

1шт.

468732R1

BOLT, 3/4 x 2-1/2 in. mach, special

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

1/2 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

4

522537R1

SPACER

tool bar attaching plate

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

522510R1

BAR

SWIVEL, rear upper parallel link, RH thread

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

6

522591R1

PLUG

CUSHION, upper parallel link lock bolt

1шт.

7

522506R2

TURNBUCKLE

ROD, upper parallel

1шт.

8

522509R1

BAR

SWIVEL, rear upper parallel link, LH thread

1шт.

9

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

10

PO3A

SPRING

lift rod cushion

1шт.

11

CLIP, lift arm, discontinued for service

1шт.

12

467649R91

ARM

lift short

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 in. rd-hd

1шт.

13

522508R1

BOLT,U, 1/2" x 3 1/8"

U-BOLT, lift arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

14

467643R1

ROD, no. 1 inside lift

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

15

464414R1

RETAINER

WASHER, lower parallel link inner bearing

1шт.

16

464409R2

LINK, lower parallel inner

1шт.

17

110161

FITTING, 3/16 in. straight drive type lubrication

1шт.
