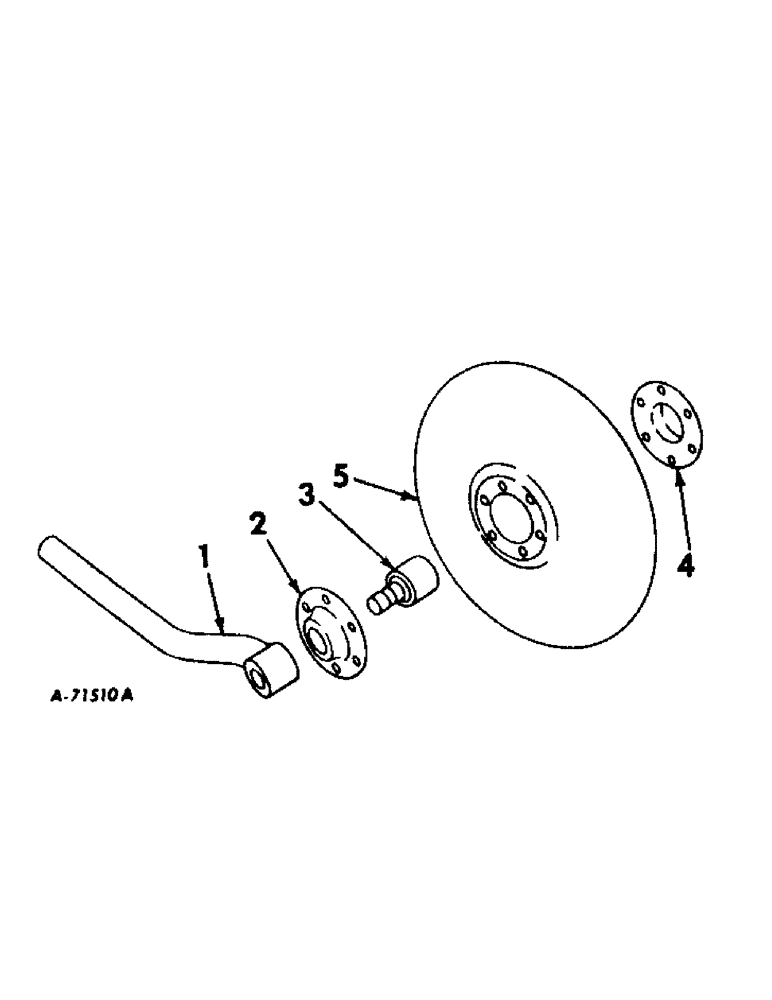

Запчасти Case IH 670 (AH-5) - DISK WEEDER

1

483294R1

SUPPORT ASSY.

STANDARD, disk

1шт.

1

468010R1

SUPPORT ASSY.

STANDARD, disk

1шт.

138711

SCREW, 3/8 x 7/16 in. oval-pt socket hd set

1шт.

2

468009R1

RETAINER

HOUSING, open bearing

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 in. C-Z pltd cap

6шт.

120376

NUT,5/16"-18, G5

6шт.

3

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

4

487081R1

COVER

HOUSING, closed bearing

1шт.

5

468011R1

DISC

DISK, 16 in.

1шт.

5

469372R1

DISC,13"

DISK, 13 in.

1шт.
