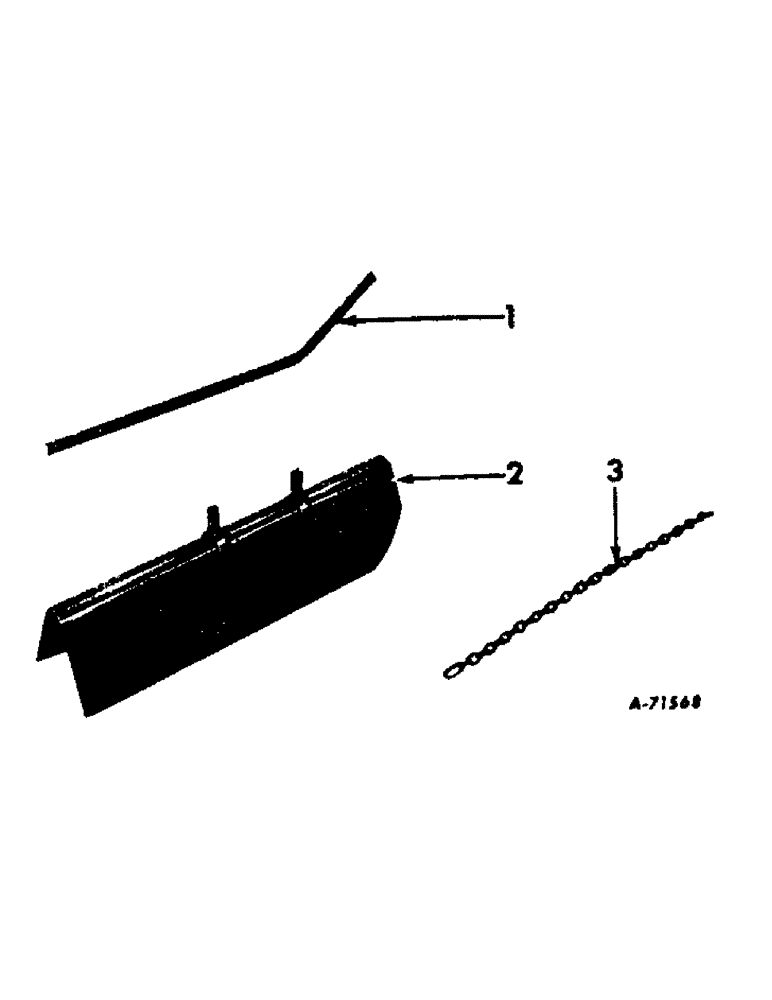

Запчасти Case IH 670 (AH-7) - SHIELD

1

468030R11

SUPPORT

ASSY, shield

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

511882R92

SHIELD

ASSY

1шт.

17437R1

BOLT, 3/8 x 1-1/8 in. mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

468032R1

CHAIN (AG)

CHAIN, shield adjusting

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 in. mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

10/32 x 1 in. x 16 ga

1шт.
