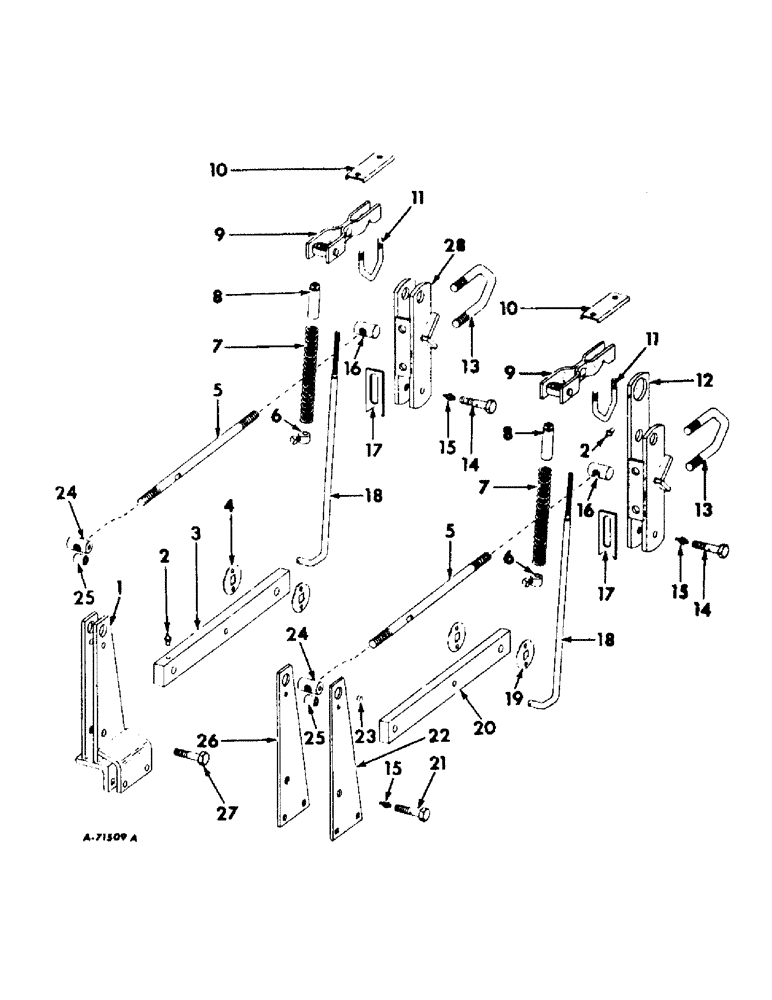

Запчасти Case IH 669 (AG-04) - PARALLEL LINKAGE

1

467637R91

PLATE ASSEMBLY, tool bar attaching LH

1шт.

1

467638R91

PLATE ASSEMBLY, tool bar attaching RH

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. crg, special, heat-treated

4шт.

19289R1

BOLT, 1/2 x 3/4 in. C-Z mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

110161

FITTING, 3/16 in. drive type lubrication

3шт.

3

464409R2

LINK, lower parallel inner

2шт.

4

464414R1

RETAINER

WASHER, lower parallel link bearing inner

4шт.

5

522506R2

TURNBUCKLE

ROD, upper parallel

4шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

4шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt set

4шт.

7

PO23

SPRING

pressure

1шт.

8

525721R11

NUT, pressure rod adjusting

4шт.

9

467649R91

ARM

ASSY, lift short

4шт.

NLS

NO LONGER SERVICED

3/8 x 1 in. rd-hd

4шт.

10

525668R1

CLIP, lift arm

4шт.

11

522508R1

BOLT,U, 1/2" x 3 1/8"

U-BOLT, lift arm

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

12

SUPPORT, head bracket and rockshaft, discontinued for service

1шт.

12

SUPPORT, head bracket and rockshaft, discontinued for service

1шт.

13

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

4шт.

280954

NUT,3/4"-10, G5

8шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

14

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

3/4 x 2-1/4 in., special, mach

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

6шт.

16

522509R1

BAR

SWIVEL, front upper parallel link LH thread

4шт.

17

525670R2

BAR

LOCK, frame

4шт.

615168R1

WASHER

25/32 x 1-1/2 in. x 11 ga

2шт.

18

467686R2

ROD, pressure

4шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

4шт.

19

522532R1

RETAINER

WASHER, lower parallel link bearings outer

4шт.

20

522523R1

LINK, lower parallel outer

2шт.

21

522544R2

BOLT

3/4 x 2-1/2 in., special, mach

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

22

522521R1

PLATE, tool bar attaching, not tapped

2шт.

523060R1

BOLT, 1/2 x 2-1/4 in. crg, special, heat-treated

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

2шт.

23

522591R1

PLUG

CUSHION, upper parallel link lock bolt

4шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

4шт.

24

522510R1

BAR

SWIVEL, rear upper parallel link RH thread

4шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

4шт.

25

522537R1

SPACER

tool bar attaching plate

4шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

26

522520R1

PLATE, tool bar attaching, tapped

2шт.

27

522544R2

BOLT

3/4 x 2-1/2 in. hex-hd mach, special

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

28

BRACKET ASSEMBLY, inner head, 1963, discontinued for service

2шт.
