Запчасти Case IH 669 (AG-10[B]) - IRRIGATING SHOVELS

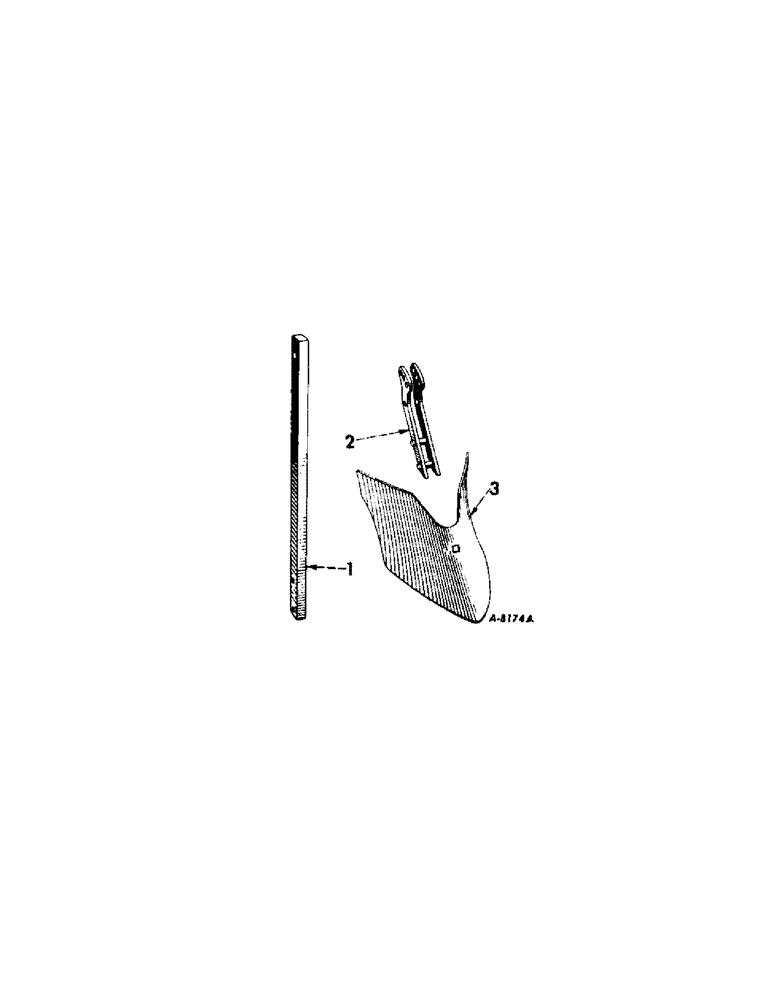

Схема запчастей Case IH 669 - (AG-10[B]) - IRRIGATING SHOVELS
2
3
1

Артикул

Название

Примечание

Количество

1

30087B

STANDARD, 9/16 x 1-1/2 in.

1шт.

1

521058R1

BAR

STANDARD, 5/8 x 1-1/2 in.

1шт.

2

521063R91

SHANK, riveted assembly, for 9/16 x 1-1/2 in. standard (58)

61шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 in. mach

2шт.

510044R2

RIVET, 5/8 x 1-1/2 in. shoulder

2шт.

2

510045R92

SHANK

riveted assembly, for 5/8 x 1-1/2 in. standard

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 in. C-Z mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

510044R2

RIVET, 5/8 x 1-1/2 in. shoulder

2шт.

3

NLS

NO LONGER SERVICED

SHOVEL, irrigating

1шт.

16247BX

BOLT,3/8" x 2 1/4", W/ Nut & Wshr

W/NUT AND WASHER, 3/8 x 2-1/4 in. special

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

614452R1

WASHER

13/32 x 1-1/4 in. x 11 ga C-Z

1шт.

Выбрано товаров: 13
