(AF-04[A]) - FRONT SECTION TOOL BARS

Запчасти Case IH 667 (AF-04[A]) - FRONT SECTION TOOL BARS

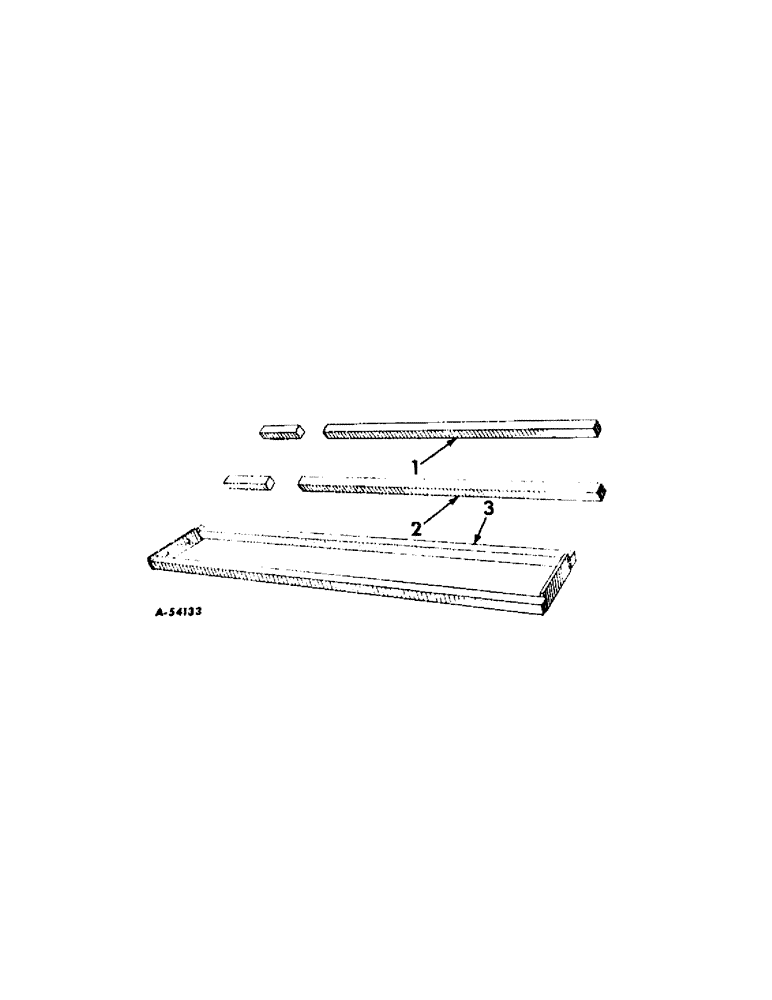

Схема запчастей Case IH 667 - (AF-04[A]) - FRONT SECTION TOOL BARS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

519532R1

TOOL BAR, front, 1-1/2 in. sq, 60 in. long

1шт.

2

519533R1

TOOL BAR, rear, 1-1/2 in. sq, 64 in. long

1шт.

3

525737R91

TOOL BAR, 1-1/2 in. sq, 74-7/16 in. long, bars spaced 10 in.

1шт.

15058R1

BOLT, 5/8 x 1-3/4 in. mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Выбрано товаров: 5
