Запчасти Case IH 667 (AF-16[C]) - CYLINDER ANCHOR

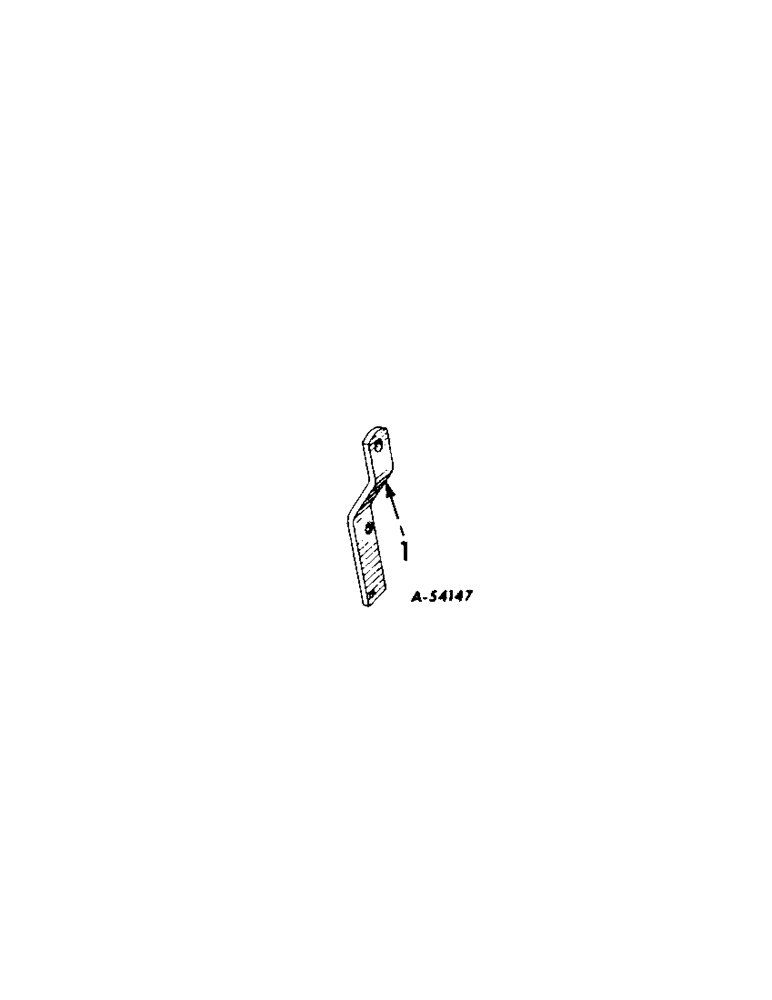

Схема запчастей Case IH 667 - (AF-16[C]) - CYLINDER ANCHOR
1

Артикул

Название

Примечание

Количество

1

525745R1

ANCHOR, cylinder left, for Farmall 340 tractor

1шт.

1

525746R1

ANCHOR, cylinder right, for Farmall 340 tractor

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

2шт.

515806R1

BOLT,Hex, 3/4" - 10 x 2"

SCREW, 3/4 x 2 in. conical hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

Выбрано товаров: 5
