Запчасти Case IH 667 (AF-16[A]) - KNIFE WEEDERS

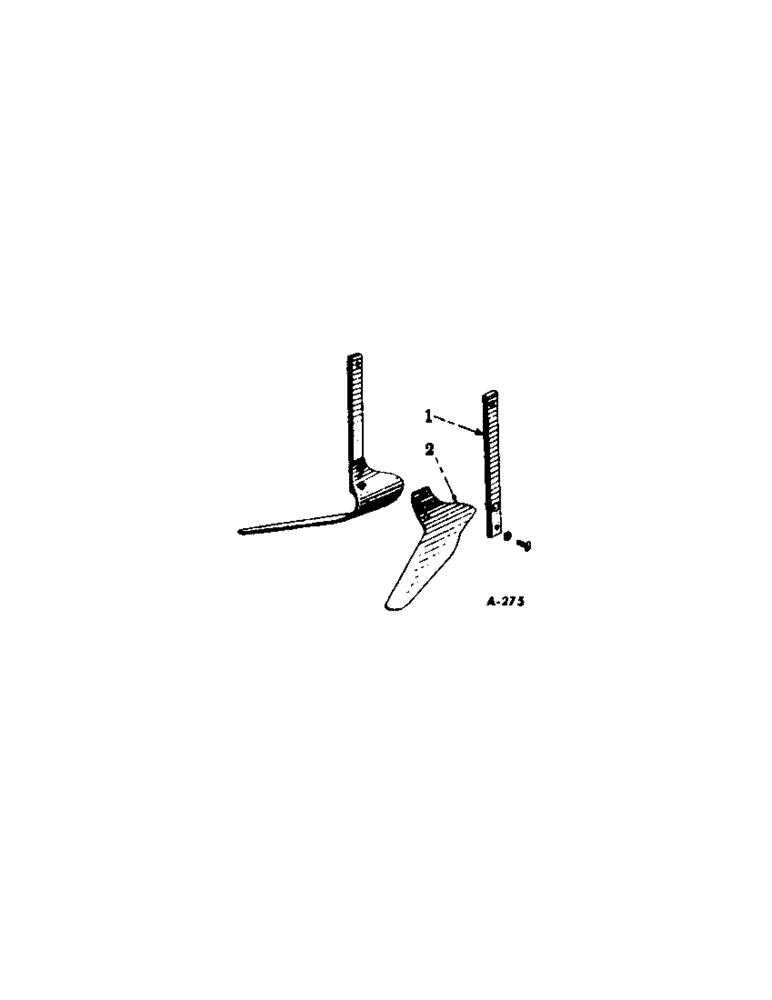

Схема запчастей Case IH 667 - (AF-16[A]) - KNIFE WEEDERS
1
2

Артикул

Название

Примечание

Количество

1

28616B

STANDARD, 9/16 x 1-1/2 in.

1шт.

1

519543R1

STANDARD, 5/8 x 1-1/2 in.

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 in. sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

2

S8291

BLADE, left, 5 in. cut

1шт.

S8292

BLADE, right, 5 in. cut

1шт.

2

S8289

BLADE, left, 6-1/2 in. cut

1шт.

2

S8290

HALF BLADE

BLADE, right, 6-1/2 in. cut

1шт.

2

26278B

BLADE, left, 6-1/2 in. cut

1шт.

2

26279B

BLADE

right, 7 in. cut

1шт.

2

25900B

SHARE

BLADE, right, 8 in. cut

1шт.

2

25901B

SHARE

BLADE, left, 8 in. cut

1шт.

Выбрано товаров: 12
