Запчасти Case IH 667 (AF-14) - DEER TONGUES, STRAIGHT BREAKOFF

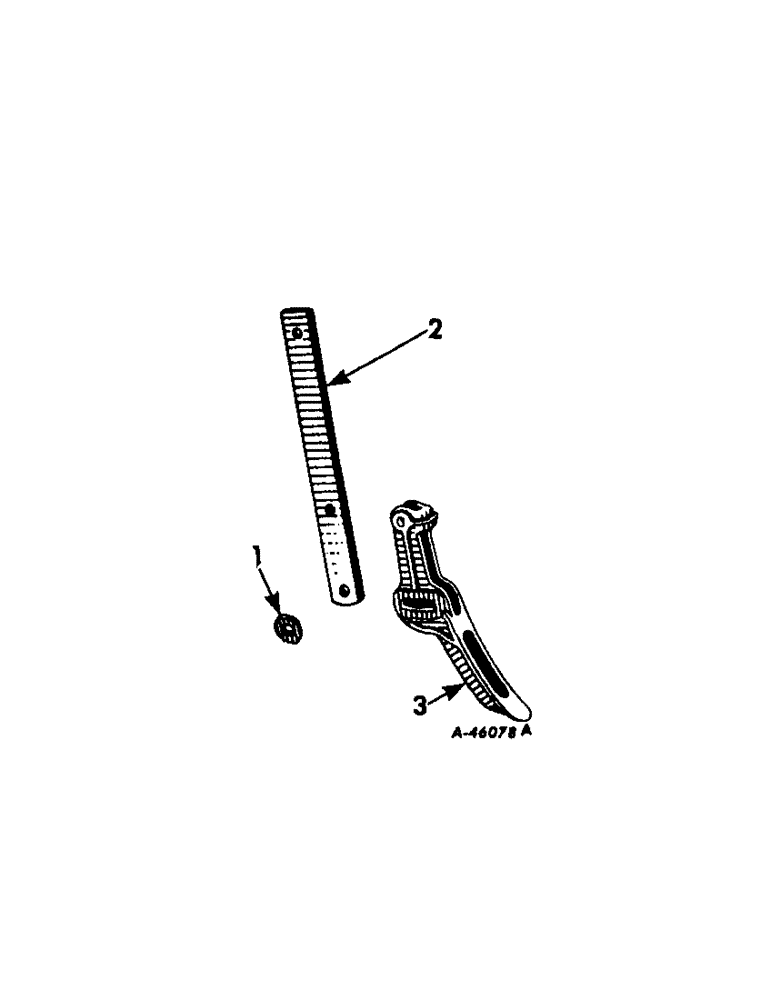

Схема запчастей Case IH 667 - (AF-14) - DEER TONGUES, STRAIGHT BREAKOFF
2
3
1

Артикул

Название

Примечание

Количество

1

5693

LOCK NUT

WASHER, corrugated

2шт.

2

521060R1

STANDARD, straight, 1-1/2 x 5/8 in.

1шт.

2

511728R1

STANDARD, straight, 1-1/2 x 9/16 in.

1шт.

3

521089R1

SHANK, slotted, for 1-1/2 x 5/8 in. standard

1шт.

3

PO701B

BREAK-OFF, for 1-1/2 x 9/16 in. standard

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 7
