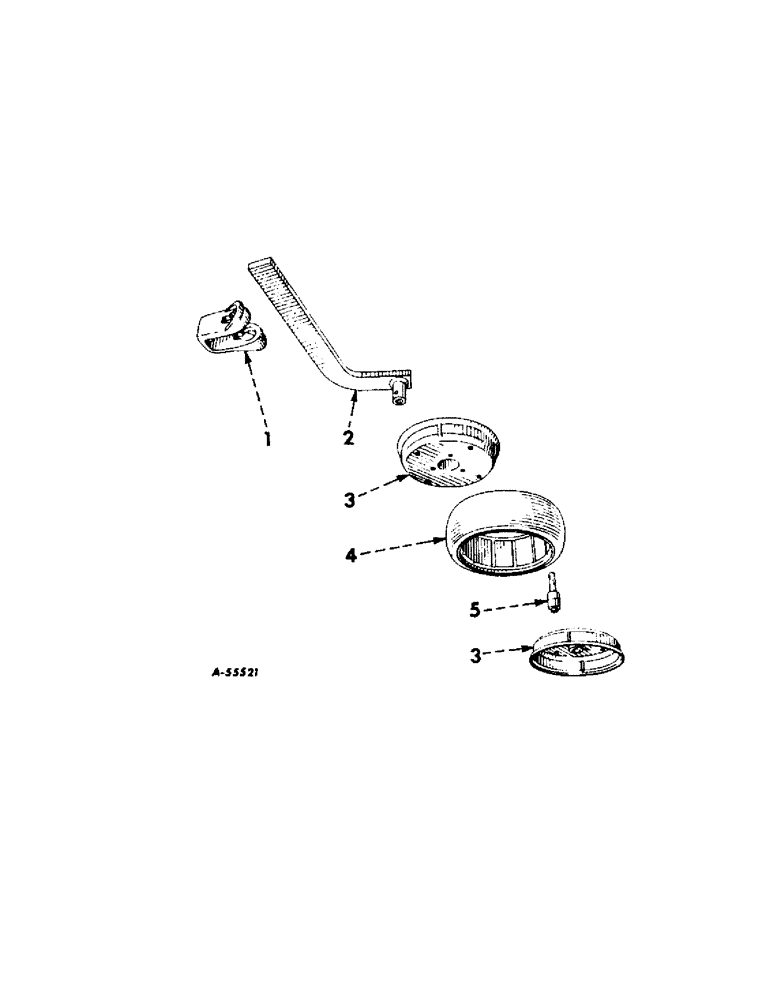

Запчасти Case IH 667 (AF-09[A]) - BALL BEARING GAUGE WHEEL

1

519476R21

CLAMP

W/SET SCREW, standard

1шт.

220081

NUT

3/4 in.

1шт.

137821

SET SCREW,Sq Hd, 3/4" - 10 x 2"

SCREW, 3/4 x 2 in. sq-hd dog pt set

1шт.

2

526783R91

STANDARD W/SLEEVE, left

1шт.

2

526784R91

STANDARD W/SLEEVE, right

1шт.

222503

PRESSURE PIPE

SCREW, 3/8 x 7/16 in. hex-soc-hd fl-pt set

2шт.

3

526768R1

WHEEL

RIM, gauge wheel

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 in. C-Z pltd mach

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

4

516492R1

TYRE/TIRE

TIRE, zero-pressure, 4.00 x 12

1шт.

5

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSEMBLY, double row ball

1шт.
