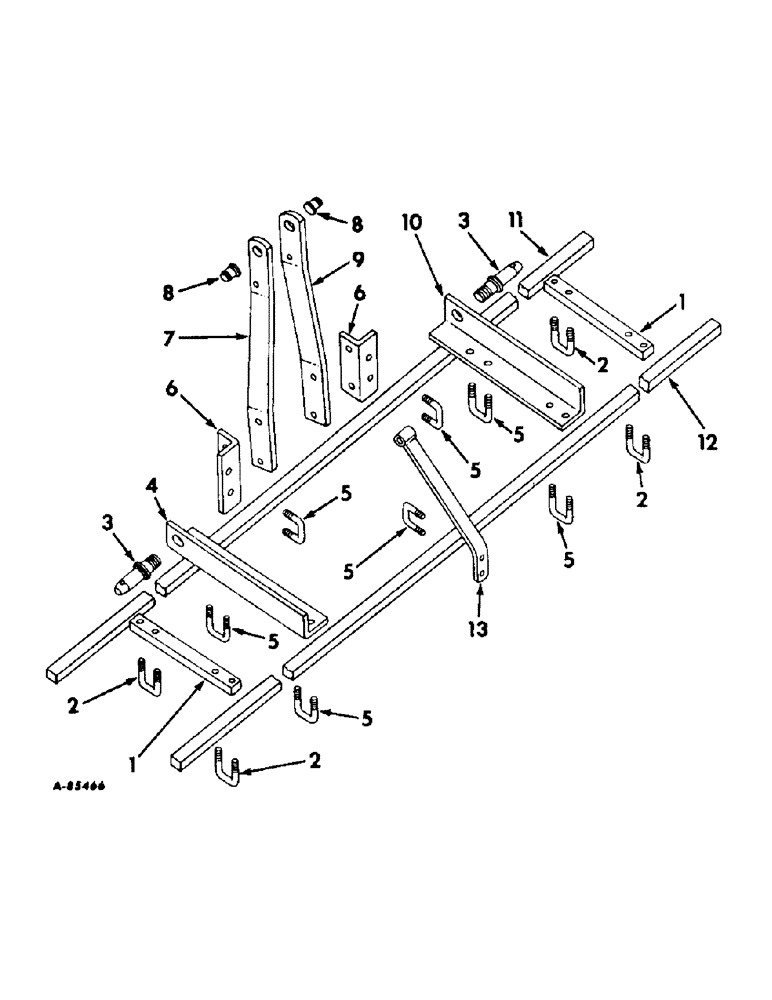

Запчасти Case IH 667 (AF-07) - DOUBLE TOOL BAR REAR SECTION 3-PT HITCH (1965 AND SINCE)

1

519536R1

BAR, tie

1шт.

2

519535R1

U-BOLT

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

470511R1

STUD

lower, category 1 hitch

2шт.

218200

NUT,7/8"-14, G5

7/8 in.

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

291433R1

WASHER, 1-5/32 x 2 x 7/32 ga

2шт.

3

472790R2

STUD

lower, category 2 hitch

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8 UNF C-Z pltd

2шт.

131049

HYD CONNECTOR

1-1/8 in. C-Z pltd lock

2шт.

291433R1

WASHER, 1-5/32 x 2 x 7/32 ga

2шт.

4

483854R1

ANGLE, stud LH

1шт.

5

463969R1

U-BOLT

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

483856R1

ANGLE, mast

1шт.

7

483859R1

SUPPORT, upper mast LH

1шт.

15058R1

BOLT, 5/8 x 1-3/4 in. crg

4шт.

17723R1

BOLT,Hex, 5/8" - 11 x 4"

5/8 x 4 in. mach

1шт.

102639

NUT,5/8"-11, G5

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

8

481074R1

BUSHING, hitch bracket

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, , upper arm bushing #100, Ext

2шт.

9

483860R1

SUPPORT, upper mast RH

1шт.

15058R1

BOLT, 5/8 x 1-3/4 in. crg

4шт.

17723R1

BOLT,Hex, 5/8" - 11 x 4"

5/8 x 4 in. mach

1шт.

102639

NUT,5/8"-11, G5

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

10

483855R1

ANGLE, stud RH

1шт.

11

519537R1

BAR, tool, 106 in. long

1шт.

11

519539R1

BAR, tool, 90 in. long

1шт.

12

519538R2

BAR, tool, 146 in. long

2шт.

13

483857R91

BRACE ASSY, mast

1шт.
