Запчасти Case IH 667 (AF-06) - TOOL BAR REAR SECTION, 3-PT HITCH FOR FARMALL 240, 340, 404 AND 504 TRACTORS (UP TO 1965)

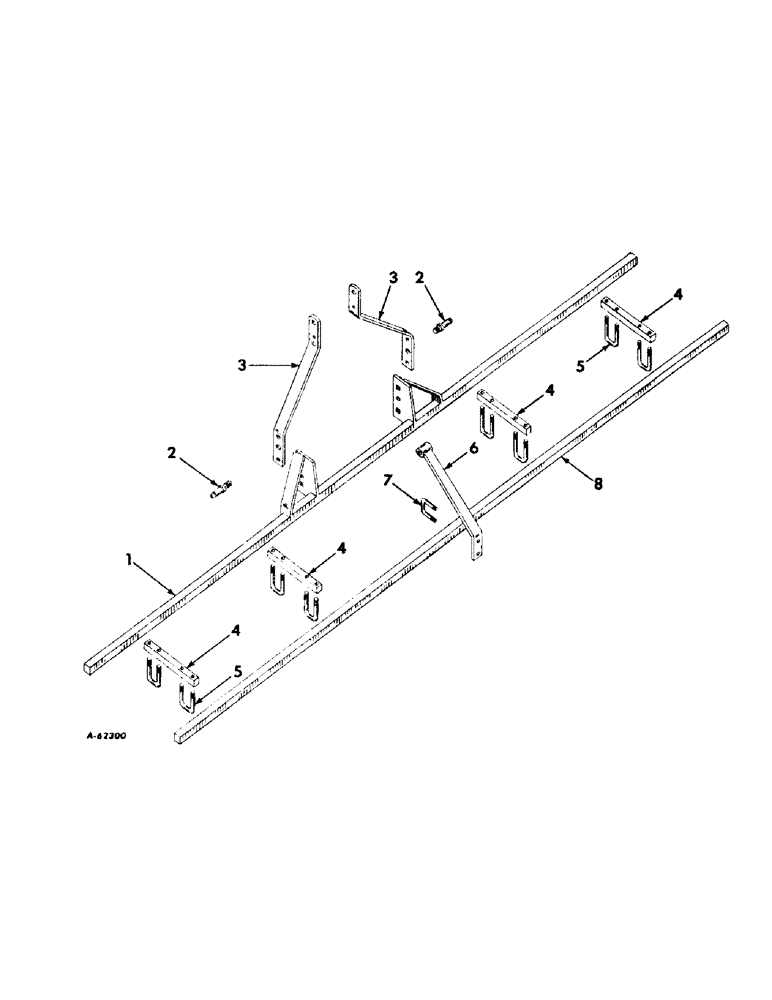

Схема запчастей Case IH 667 - (AF-06) - TOOL BAR REAR SECTION, 3-PT HITCH FOR FARMALL 240, 340, 404 AND 504 TRACTORS (UP TO 1965)
2
4
7
3
5
4
4
1
3
5
4
6
8
2

Артикул

Название

Примечание

Количество

1

519539R11

TOOL BAR, 90 in. long

1шт.

1

519538R21

TOOL BAR, 146 in. long

1шт.

2

468869R1

STUD

lower link

1шт.

218200

NUT,7/8"-14, G5

7/8 in. UNF

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

3

MAST, upper, discontinued for service

1шт.

15058R1

BOLT, 5/8 x 1-3/4 in. crg

4шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, 5/8 x 3-1/2 in. mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

102639

NUT,5/8"-11, G5

5шт.

4

519536R1

BAR, tie

1шт.

5

519535R1

U-BOLT, tie bar

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

BRACE ASSY, mast, discontinued for service

1шт.

7

463969R1

U-BOLT, mast

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

519537R1

TOOL BAR, 106 in. long

1шт.

8

519538R2

TOOL BAR, 146 in. long

1шт.

Выбрано товаров: 20
