Запчасти Case IH 665A (AE-23[A]) - EXTENSION

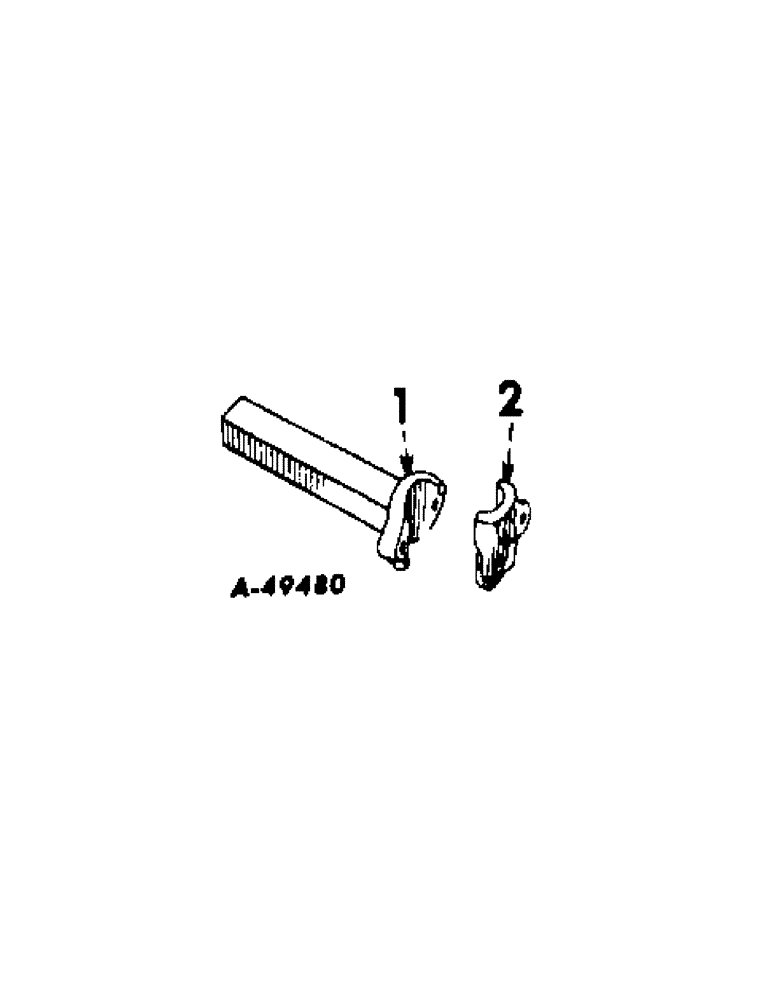

Схема запчастей Case IH 665A - (AE-23[A]) - EXTENSION
2
1

Артикул

Название

Примечание

Количество

1

29148BA

EXTENSION, tool bar, 1-1/4 in. sq, 5-1/2 in. long

1шт.

1

28164BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 6-1/2 in. long

1шт.

1

28236BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 7-3/4 in. long

1шт.

1

521750R1

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 9-3/4 in. long

1шт.

1

29603BA

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 10-3/4 in. long

1шт.

1

524336R1

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 13 in. long

1шт.

2

1779BB

CLAMP

CAP, tool bar extension

1шт.

29822B

BOLT

1/2 x 2-3/4 in. sq-hd heat-treated mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
