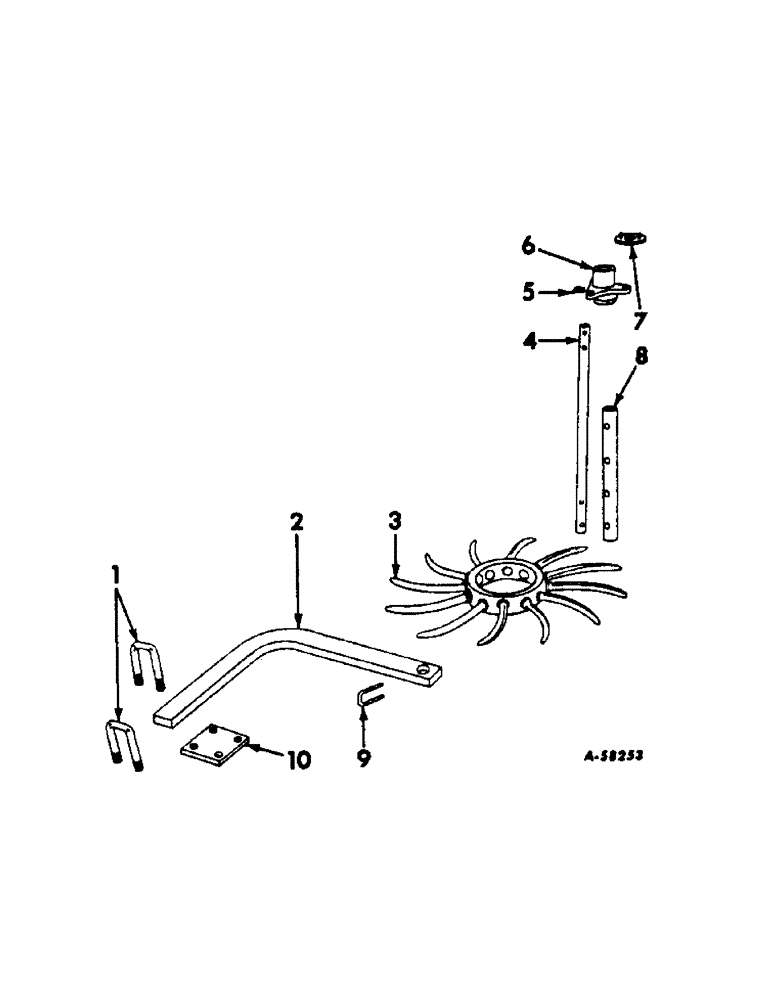

Запчасти Case IH 665A (AE-20) - ROTARY WEEDERS

1

516206R1

U-BOLT, attaching arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

461719R1

ARM, weeder attaching

1шт.

3

522294R11

WHEEL W/HUB, weeder

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

4

461721R1

AXLE, weeder

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

552356R1

WASHER

25/32 x 2-1/4 in. x 11 ga

2шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

6

522293R1

HUB, wheel

1шт.

7

516447R1

WASHER, wear-on axle

1шт.

8

517706R1

SLEEVE, bearing

1шт.

Q216

WASHER

1-1/32 x 1-3/4 in. x 16 ga

3шт.

9

461720R1

PIN, locking

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

10

516211R1

CLIP, u-bolt

1шт.
