Запчасти Case IH 665A (AE-10) - FIRST GANG PARALLEL LINKAGE, BUILT 1960 AND SINCE

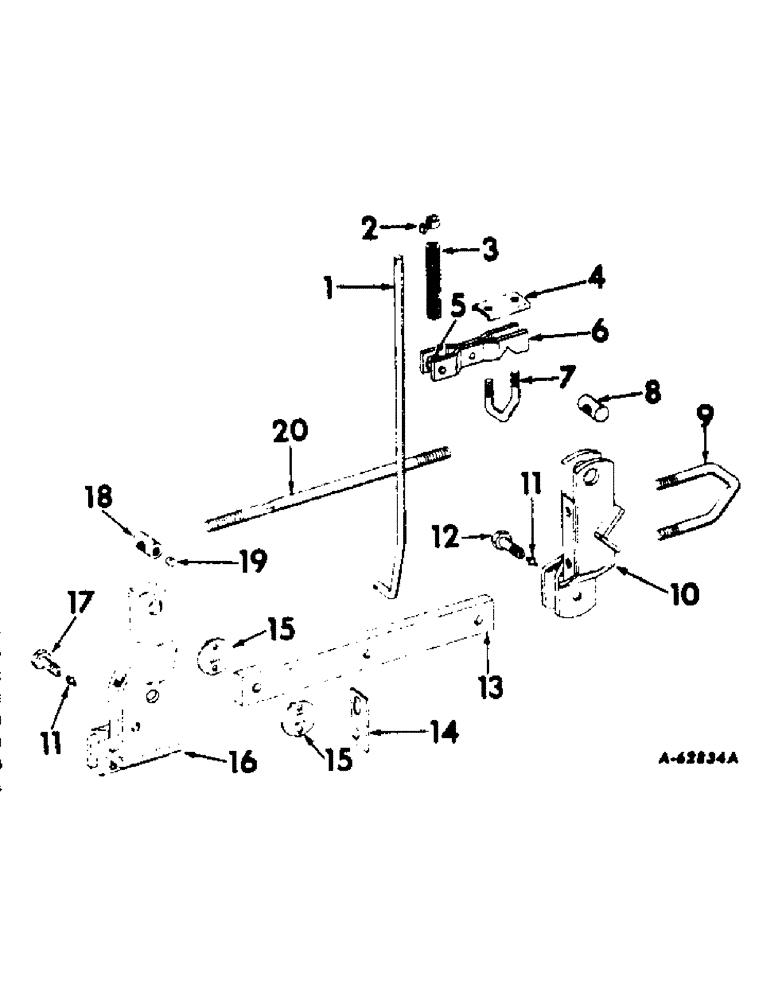

Схема запчастей Case IH 665A - (AE-10) - FIRST GANG PARALLEL LINKAGE, BUILT 1960 AND SINCE
13
7
5
11
17
4
16
12
6
15
19
1
9
20
3
18
15
8
11
10
14
2

Артикул

Название

Примечание

Количество

1

464410R1

ROD, inside pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

523061R1

WASHER

21/32 x 1-3/8 in. x 11 ga case hardened

1шт.

2

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

3

PO3A

SPRING

inner and outer lift rod cushion

1шт.

4

CLIP, lift arm, discontinued for service

1шт.

5

525669R1

TRUNNION

lift arm, order 468022R1

1шт.

5

468022R1

TRUNNION

lift arm

1шт.

6

525667R91

ARM, short lift

1шт.

7

522508R2

U-BOLT, lift arm, for 1-1/4 in. sq rockshaft

1шт.

7

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lift arm, for 1-3/8 in. sq rockshaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

522509R1

BAR

SWIVEL, upper parallel link front, LH thd

1шт.

9

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

1шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

10

464399R91

BRACKET, head LH

1шт.

10

464400R91

BRACKET, head RH

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, straight 1/4 in. lubrication, inner Lower parallel link

1шт.

12

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

13

464409R2

LINK, inner lower parallel

1шт.

14

464415R1

LOCK, frame

1шт.

15

464414R1

RETAINER

WASHER, wear

1шт.

16

464390R91

PLATE, inner tool bar left attaching

1шт.

16

464391R91

PLATE, inner tool bar right attaching

1шт.

464413R1

BOLT, 1/2 x 2-3/4 in. heat-treated crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

17

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

18

522510R1

BAR

SWIVEL, upper parallel link rear, RH thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

19

522591R1

PLUG

CUSHION, upper parallel link locking bushing fibre

1шт.

20

522506R2

TURNBUCKLE

ROD, upper parallel

1шт.

Выбрано товаров: 37
