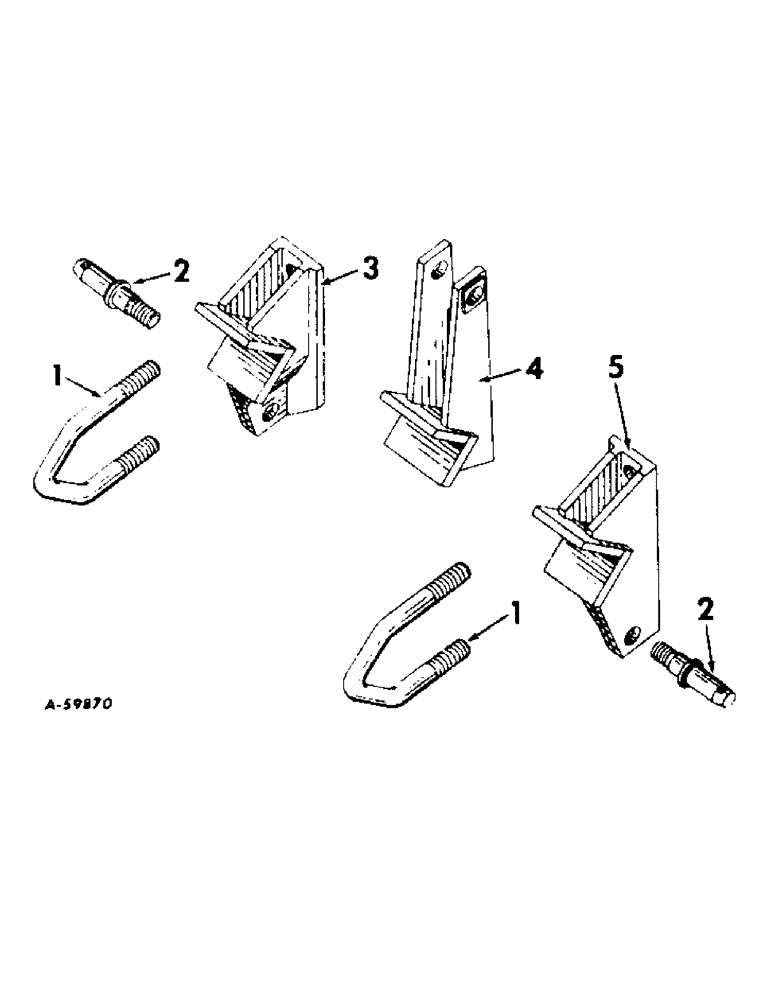

Запчасти Case IH 663 (AD-03) - THREE-POINT HITCH, CATEGORY II, (58-61)

1

462402R1

BOLT

U-BOLT

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

PO12898

WASHER

29/32 x 1-1/2 in. x 11 ga

2шт.

2

472790R2

STUD

lower, also order attaching parts

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-NF type 5

2шт.

131049

HYD CONNECTOR

1-1/8 lock

2шт.

3

462403R11

BRACKET ASSEMBLY, lower attaching LH

1шт.

4

462399R91

MAST ASSEMBLY

1шт.

280954

NUT,3/4"-10, G5

2шт.

273320

PANEL,Hex, 3/4"-10 x 10", G5

BOLT, 3/4 x 10 pln type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

462404R11

BRACKET ASSEMBLY, lower attaching RH

1шт.
