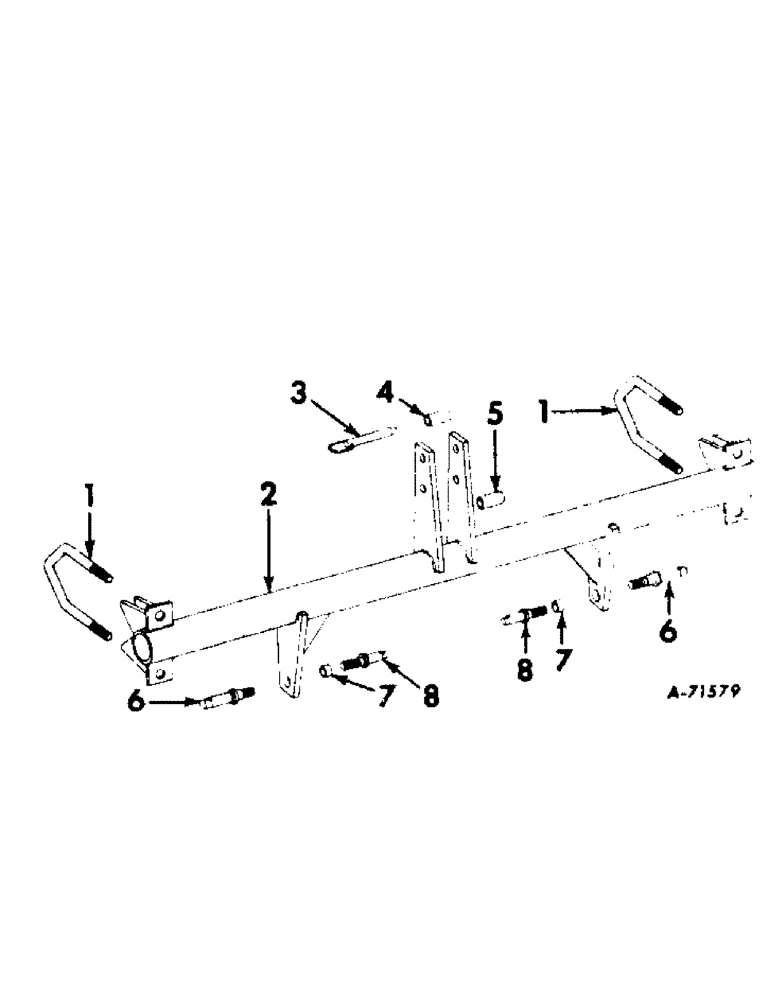

Запчасти Case IH 663 (AD-03[A]) - THREE-POINT HITCH

1

525626R1

BOLT,U, 7/8" - 9 x 8 3/8"

U-BOLT

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

2

467100R92

BRACKET

hitch

1шт.

3

380580R91

PIN

upper link

1шт.

4

380582R1

BUSHING

upper link

1шт.

5

462425R1

SPACER

mast

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4 x 4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

6

472790R2

STUD

lower, also order attaching parts, for category 2

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8 UNF C-Z pltd

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 lock C-Z pltd

2шт.

7

467105R1

BUSHING, lower stud, for category 1, used only with stud, 525896R1

2шт.

8

525896R1

STUD

lower, for category 1, (61-63)

2шт.

8

470511R1

STUD

lower, for category 1, (63)

2шт.

426767

NUT,7/8"-14, G5

7/8-NF type 5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 in. x 11 ga C-Z pltd

2шт.
