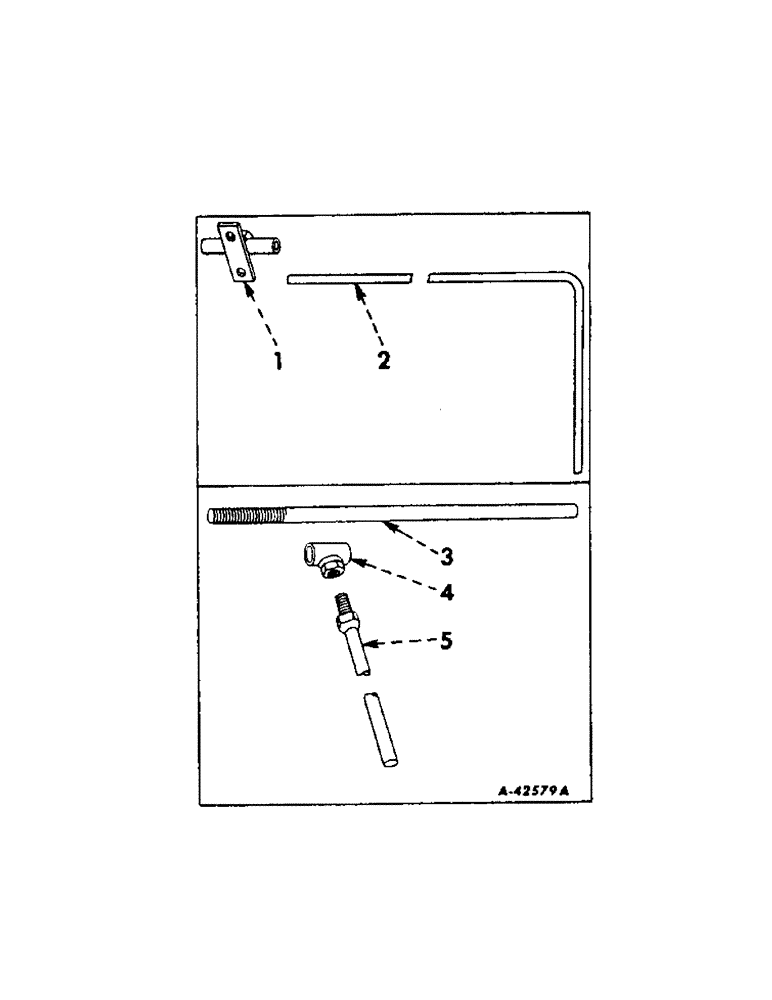

Запчасти Case IH 663 (AD-20[B]) - DRIVING GUIDE

1

BRACKET, guide rod, 1956 to 1958, discontinued for service

1шт.

17414R1

BOLT, 1/2 x 3/4 in. mach

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

2

ROD, guide, 1956 to 1958, discontinued for service

1шт.

3

525331R1

ROD

EXTENSION, row guide, 1958 and since

1шт.

102639

NUT,5/8"-11, G5

2шт.

551177R1

WASHER

25/32 x 1-1/4 in. x 16 ga

2шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, row guide

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd set

1шт.

5

492631R1

ROD

GUIDE, row, 1958 and since

1шт.
