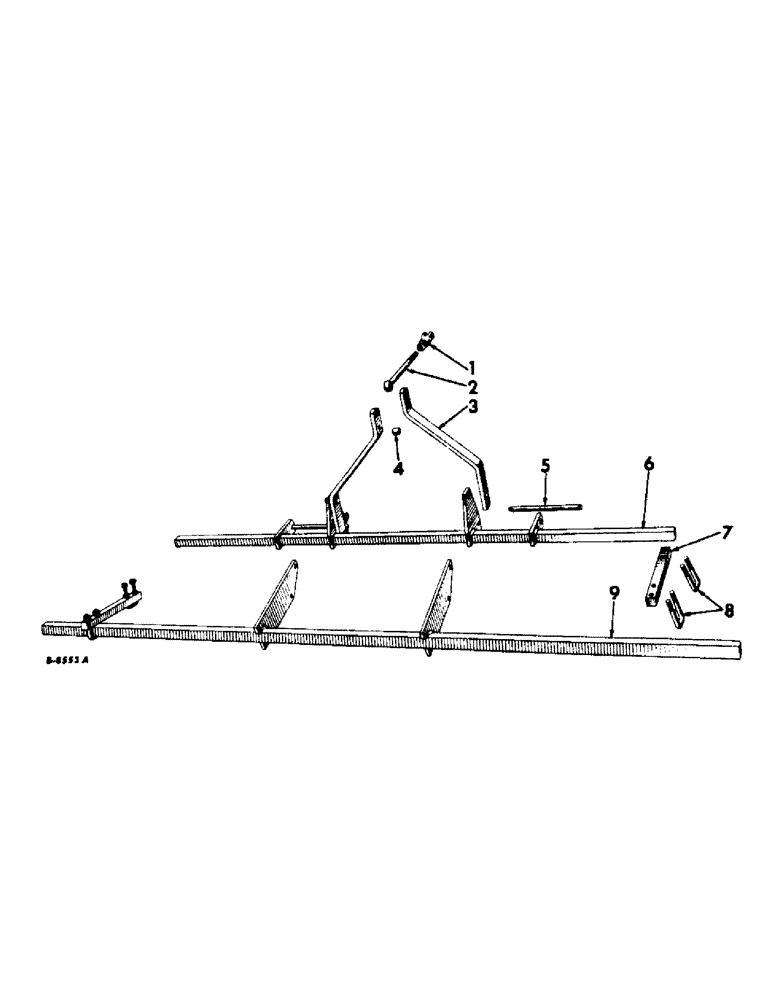

Запчасти Case IH 662 (AC-05) - REAR SECTION TOOL BARS, 3 PT. HITCH

1

519513R1

SLEEVE, upper parallel link

1шт.

519573R1

PIN, 3/4 x 2-3/4 in. pointed

1шт.

2

519516R1

LINK, upper parallel

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

350562R1

PIN, 3/4 x 3-1/16 in. dld-std-hd

1шт.

3

519551R1

BRACKET, upper parallel link

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 type 1

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

519571R1

SPACER, upper parallel link bracket

1шт.

5

519515R1

PIN, tool bar attaching

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

517843R1

COTTER PIN

PIN, quick attachable cotter

1шт.

6

519549R91

TOOL BAR, 1-1/2 in. sq, 90 in. long

1шт.

6

519550R92

TOOL BAR, 1-1/2 in. sq, 146 in. long

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

519536R1

BAR, tie

1шт.

8

519535R1

U-BOLT, tie bar

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

519577R91

TOOL BAR, 1-1/2 in. sq, 106 in. long

1шт.

9

519576R92

TOOL BAR, 1-1/2 in. sq, 146 in. long

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 type 1

2шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 type 1

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
