Запчасти Case IH 662 (AC-05[A]) - ATTACHING BAR AND CLAMP

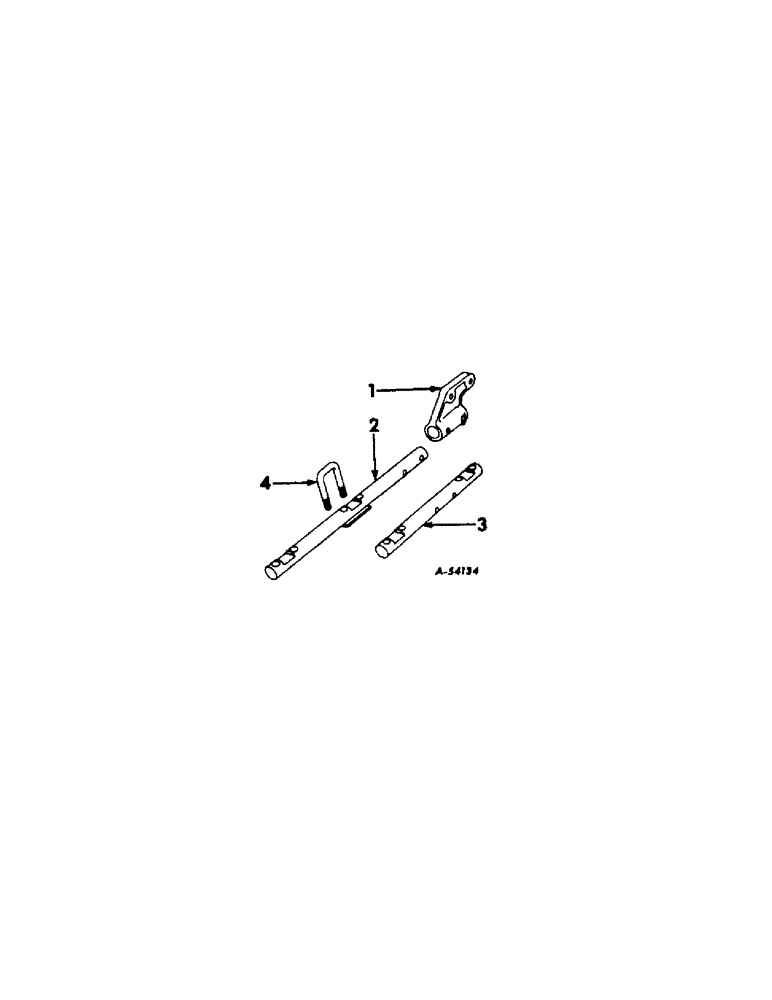

Схема запчастей Case IH 662 - (AC-05[A]) - ATTACHING BAR AND CLAMP
2
4
3
1

Артикул

Название

Примечание

Количество

1

525738R1

CLAMP, tool bar attaching

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Q814

AXLE PIN,1/2" x 2 11/16"

PIN, 1/2 x 2-11/16 in. dld-std-hd

1шт.

11002VA

WASHER

17/32 x 7/8 in. x 16 ga

1шт.

2

525740R11

BAR, attaching, for Farmall 240, 460 and 560 tractors

1шт.

3

525741R1

BAR, attaching, for Farmall 340 tractor

1шт.

4

525739R1

U-BOLT, attaching bar

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

523061R1

WASHER

21/32 x 1-1/4 in. x 11 ga case-hardened

2шт.

Выбрано товаров: 9
