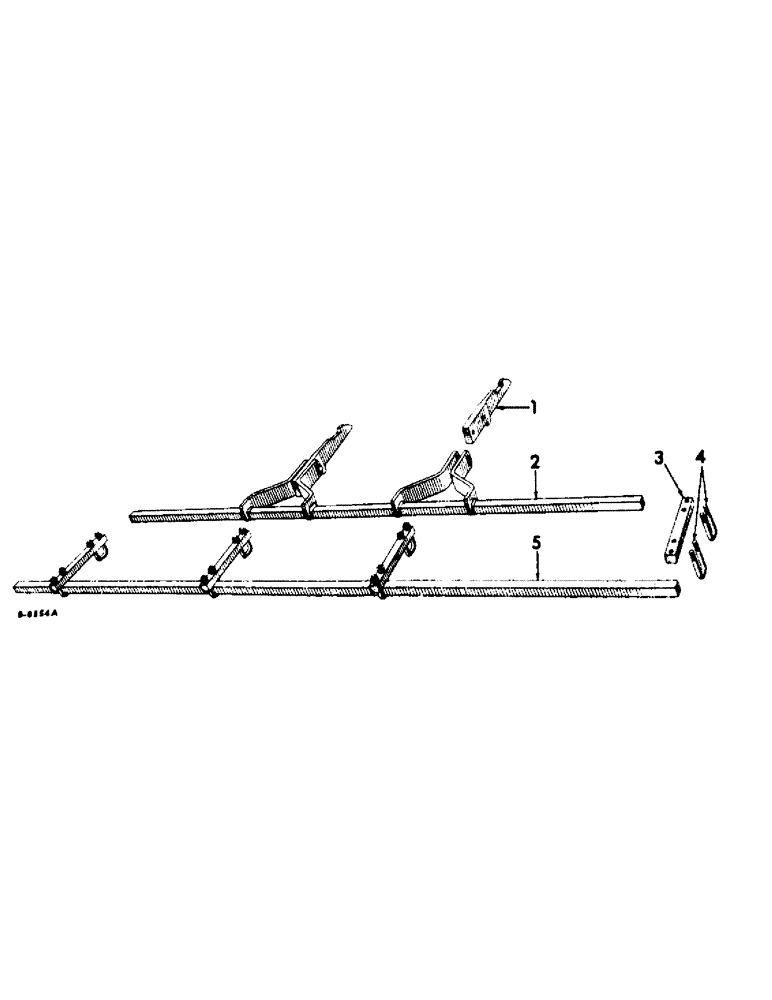

Запчасти Case IH 662 (AC-04) - REAR SECTION TOOL BARS, 2 PT. HITCH

1

519578R11

BEAM, coupling

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 type 1

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

575810R1

WASHER

21/32 x 1-1/2 in. x 11 ga

2шт.

2

519581R91

TOOL BAR, 1-1/2 in. sq, 90 in. long

1шт.

2

519582R92

TOOL BAR, 1-1/2 in. sq, 146 in. long

1шт.

3

519536R1

BAR, tie

1шт.

4

519535R1

U-BOLT, tie bar

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

519537R1

TOOL BAR, 1-1/2 in. sq, 106 in. long

1шт.

5

519538R2

TOOL BAR, 1-1/2 in. sq, 146 in. long

1шт.
