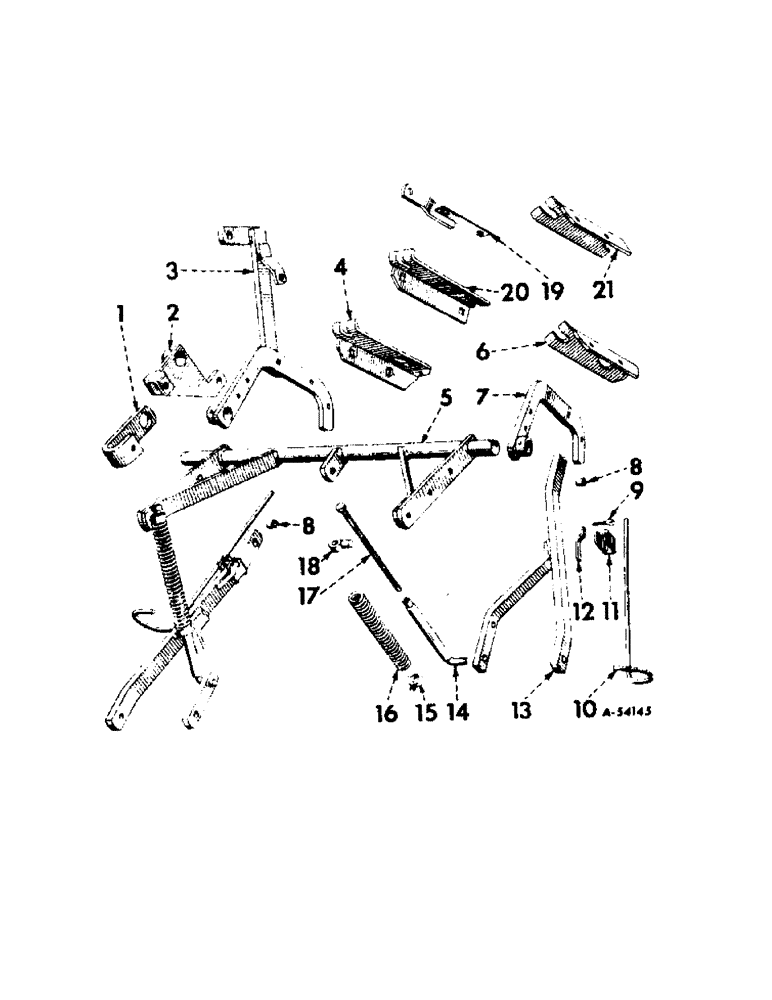

Запчасти Case IH 662 (AC-02[A]) - REAR SECTION ROCKSHAFT AND PARALLEL LINK, NON FAST-HITCH

1

519567R1

ARM, lift

1шт.

2

519566R11

ARM, cylinder attaching and lifting

1шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

519726R1

PIN, 3/4 x 2-3/4 in. pointed

1шт.

3

519558R91

BRACKET, cylinder anchor and mounting, welded assembly

1шт.

4

519569R1

ANGLE, left attaching, for 340, 460 and 560 Farmall tractors

1шт.

28414R1

BOLT,Short NK, 3/4" -10 x 2", G5

3/4 x 2 crg type 5

1шт.

27837R1

BOLT, 3/4 x 2-3/4 crg type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

519519R11

ROCKSHAFT, raising, welded assembly

1шт.

18821R1

BOLT

5/8 x 1-1/4 type 1

1шт.

18172R1

BOLT

3/4 x 3 type 1

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

2шт.

6

519570R1

ANGLE, right attaching, for 340, 460 and 560 Farmall tractors

1шт.

28414R1

BOLT,Short NK, 3/4" -10 x 2", G5

3/4 x 2 crg type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

519557R11

BRACKET, mounting

1шт.

8

519568R1

BUSHING, lower parallel link

1шт.

9

516653R1

EYEBOLT, support stand

1шт.

10

519517R1

STAND, left support

1шт.

10

519518R1

STAND, right support

1шт.

11

519546R1

CLIP, support stand attaching

1шт.

12

515165R1

NUT, support stand tail

1шт.

13

519545R11

LINK, lower parallel

1шт.

27837R1

BOLT, 3/4 x 2-3/4 crg type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

575814R1

WASHER

25/32 x 2 in. x 11 ga

1шт.

14

519524R11

SLEEVE, pressure rod

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

15

591BAX

COLLAR W/SET SCREW, set

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

16

519572R1

SPRING, pressure, 1-5/8 in. OD, 12 in. long, 28 coils

1шт.

17

519574R1

BOLT, pressure adjusting

1шт.

18

519514R1

SWIVEL, pressure rod

1шт.

19

524146R91

BRACE, cylinder anchor, for 240 Farmall tractor

1шт.

20

521679R1

ANGLE, left attaching, for 240 Farmall tractor

1шт.

21

521680R1

ANGLE, right attaching, for 240 Farmall tractor

1шт.

28414R1

BOLT,Short NK, 3/4" -10 x 2", G5

3/4 x 2 crg type 5

3шт.

27837R1

BOLT, 3/4 x 2-3/4 crg type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.
