Запчасти Case IH 662 (AC-16) - ADJUSTABLE KNIFE WEEDER

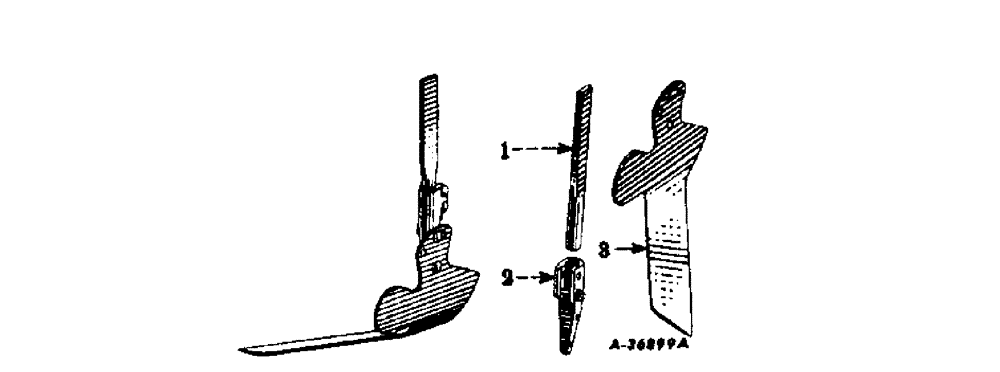

Схема запчастей Case IH 662 - (AC-16) - ADJUSTABLE KNIFE WEEDER
1
2
3

Артикул

Название

Примечание

Количество

1

521065R1

STANDARD, 1-1/2 x 5/8 in.

1шт.

1

510339R1

STANDARD, 1-1/2 x 9/16 in.

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 in. sq-nk crg

1шт.

15039R1

BOLT

3/8 x 1-1/2 in. sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

PO2229

BRACKET, swivel

1шт.

15039R1

BOLT

3/8 x 1-1/2 in. sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

PO20193

BLADE

left, 6-1/2 in. cut

1шт.

3

PO20192

BLADE

right, 6-1/2 in. cut

1шт.

3

PO20194

BLADE

right, 7-1/2 in. cut

1шт.

3

PO20195

BLADE

left, 7-1/2 in. cut

1шт.

3

510765R1

BLADE, left, 5-1/2 in. cut

1шт.

3

510766R1

BLADE, right, 5-1/2 in. cut

1шт.

Выбрано товаров: 14
