Запчасти Case IH 662 (AC-08) - PARALLEL LINKAGE

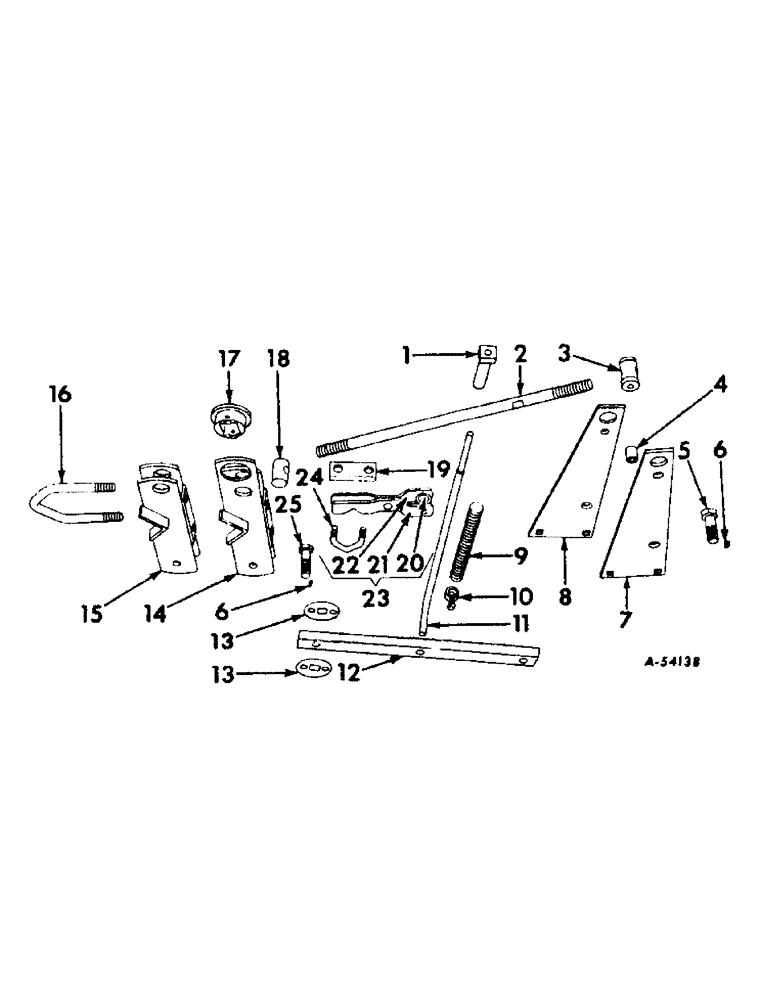

Схема запчастей Case IH 662 - (AC-08) - PARALLEL LINKAGE
11
6
22
9
14
6
12
1
24
20
10
8
13
15
4
13
19
17
5
3
21
16
7
25
18
23
2

Артикул

Название

Примечание

Количество

1

525721R11

NUT, pressure rod adjusting

1шт.

2

523448R1

ROD

upper parallel

1шт.

3

522510R1

BAR

SWIVEL, upper parallel link, rear, RH thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

4

522537R1

SPACER

tool bar attaching plate

1шт.

5

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, straight 1/4 in. lubrication, Lower parallel link pivot bolt

1шт.

7

525732R1

PLATE, tool bar attaching, tapped

1шт.

8

525731R1

PLATE, tool bar attaching, not tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

PO23

SPRING

pressure rod, 1-1/16 in. OD, 10 in. long 30-1/2 coils

1шт.

10

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sqq-hd cup-pt set

1шт.

11

525916R1

ROD PRESSURE

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

523456R1

LINK, lower parallel

1шт.

13

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

14

BRACKET, head, also rockshaft support, discontinued for service

1шт.

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. straight drive, type lubrication, note A

2шт.

15

BRACKET, head, discontinued for service

1шт.

16

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

17

522495R1

BEARING ASSY,2.75" OD x 1.125"

rockshaft inner, for 1-1/4 in. sq rockshaft

1шт.

103425

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

22188R1

WASHER

2.281 x 3.000 x .067

1шт.

17

522496R1

BUSHING

BEARING, rockshaft outer, for 1-1/4 in. sq rockshaft

1шт.

18

522509R1

BAR

SWIVEL, upper parallel link front, LH thd

1шт.

19

CLIP, lift arm, discontinued for service

1шт.

20

468022R1

TRUNNION

lift arm

1шт.

21

ARM, left short lift, discontinued for service

1шт.

22

ARM, right short lift, discontinued for service

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 in. rd-hd

1шт.

23

ARM ASSEMBLY, short lift, discontinued for service

1шт.

24

522508R2

U-BOLT, lift arm, for 1-1/4 in. sq rockshaft

1шт.

25

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

522591R1

PLUG

CUSHION, upper parallel link fibre

1шт.

Выбрано товаров: 44
