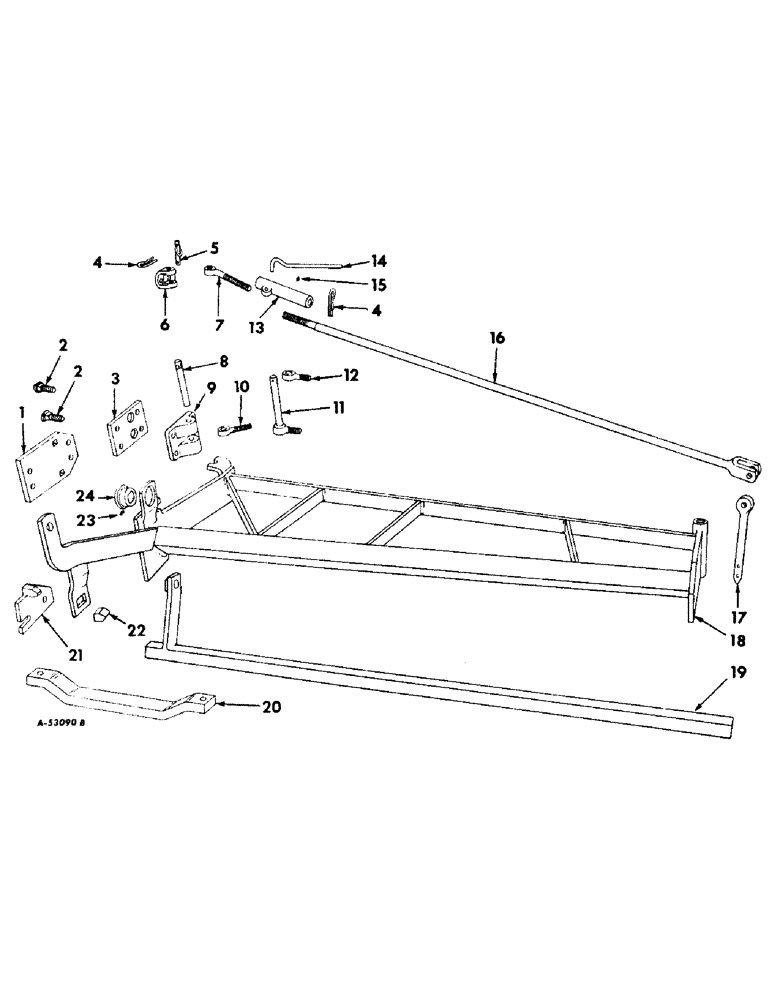

Запчасти Case IH 661 (AB-03[A]) - OUTER FRAME

1

523337R91

FRAME, left outer

1шт.

1

523338R91

FRAME, right outer

1шт.

280954

NUT,3/4"-10, G5

4шт.

2

523379R1

PIN, latch, 1/2 x 4 in. pointed

1шт.

3

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

4

523373R1

ROCKSHAFT, outer lifting

1шт.

5

520420R1

CLAMP, rockshaft joint

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

375624R1

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 8

5/8 x 3-3/4 pln type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

520421R1

CLIP, rockshaft joint, 1957, order clamp 520420R1

1шт.
