Запчасти Case IH 661 (AB-12[A]) - BALL BEARING GAUGE WHEEL

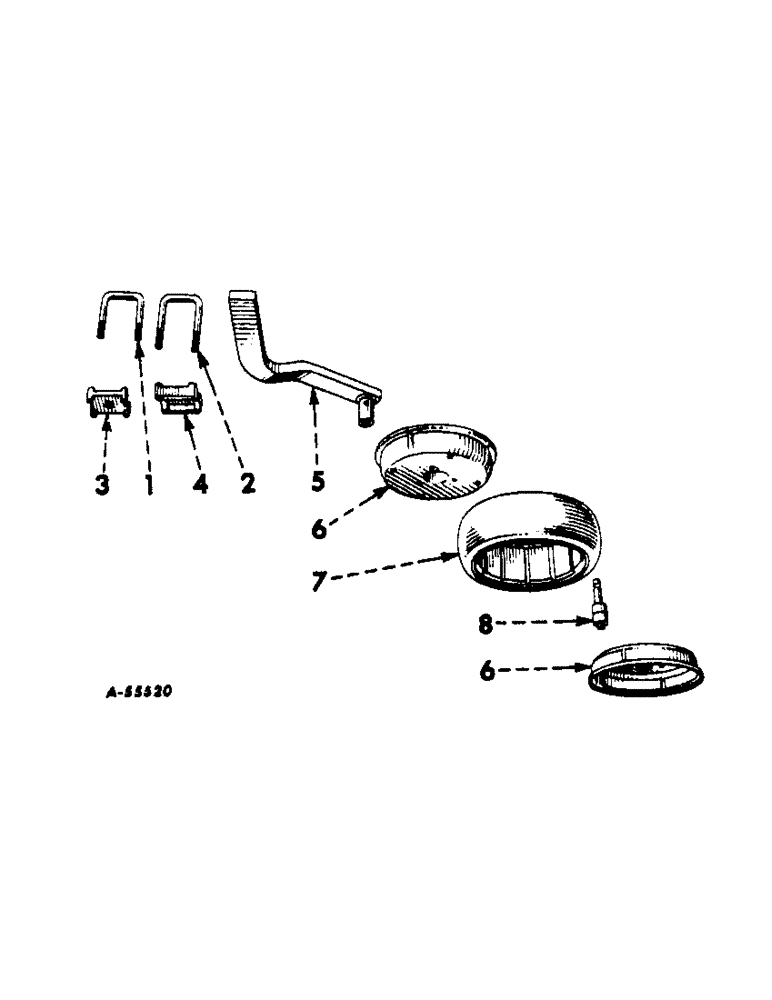

Схема запчастей Case IH 661 - (AB-12[A]) - BALL BEARING GAUGE WHEEL
5
6
8
6
2
4
3
7
1

Артикул

Название

Примечание

Количество

1

522572R1

BOLT

U-BOLT, standard, for sq tool bar

1шт.

102637

NUT,1/2"-13, G5

2шт.

2

522647R1

BOLT,U, 1/2" - 13 x 3 5/8"

U-BOLT, standard, for pipe tool bar

1шт.

102637

NUT,1/2"-13, G5

2шт.

3

522571R1

BLOCK

standard clamp, for sq tool bars

1шт.

4

522635R1

CLAMP

BLOCK, standard clamp left, for pipe tool bar

1шт.

4

522636R1

CLAMP

BLOCK, standard clamp right, for pipe tool bar

1шт.

5

483274R91

SUPPORT ASSY.

STANDARD ASSY, gauge wheel

1шт.

5

526766R11

SUPPORT ASSY.

STANDARD W/SLEEVE, left

1шт.

5

526767R11

SUPPORT ASSY.

STANDARD W/SLEEVE, right

1шт.

222502

SCREW

SCRWE, 3/8 x 3/8 in. hex socket flat pt set

2шт.

6

526768R1

WHEEL

RIM, gauge wheel

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 in. C-Z pltd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

516492R1

TYRE/TIRE

TIRE, zero pressure, 4.00 x 12 in.

1шт.

8

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSEMBLY, double row ball

1шт.

Выбрано товаров: 17
