Запчасти Case IH 661 (AB-11) - ROUND TOOL BAR AND ATTACHING CLAMP

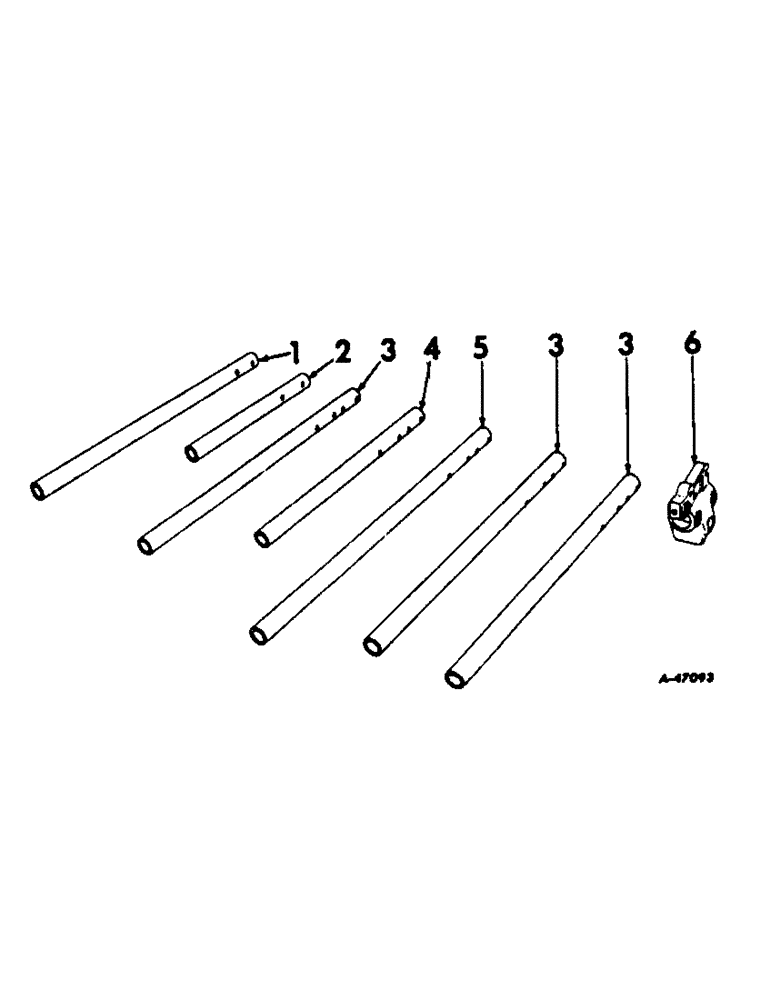

Схема запчастей Case IH 661 - (AB-11) - ROUND TOOL BAR AND ATTACHING CLAMP
5
3
4
1
2
3
6
3

Артикул

Название

Примечание

Количество

1

522643R3

PIPE, right gang, 1.66 in. OD, 32 in. long

1шт.

2

522644R4

PIPE, left gang, 1.66 in. OD, 21-1/8 in. long

1шт.

3

522645R3

PIPE, gang, 1.66 in. OD, 32 in. long

1шт.

4

522646R3

PIPE

gang, 1.66 in. OD, 25-1/2 in. long

1шт.

5

523653R3

PIPE, gang, 1.66 in. OD, 36 in. long

1шт.

6

522641R1

CLAMP

tool bar attaching

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 in. C-Z mach

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 in. C-Z mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

112980

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 in. cup-pt sq-hd set

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 11
